Buried Lights For Driveway



Buried Lights For Driveway - 1E2WC0157 A


Buried lights for driveway, covered walkway illumination, landscaping lighting and LED outdoor ground lights with dimming support. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Available with Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.

These are high quality fixtures with wattages starting from 0.8W to a maximum of 4W. These fixtures emit light in single, double and quadrangular sides. One can also use a combination of these lights to light up pavements or parking lots. Stainless steel front cover also makes them rust proof. They can take up to 2 tons of load and have a long LED lifespan due to the high-grade LEDs.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the highlights are as follows:

    Material Specifications 1E2WC0157 A


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80ÎĽm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Gasket:
    Molding shaped silicone seal
    Operating Temperature:
    -20ËšC~40ËšC
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)

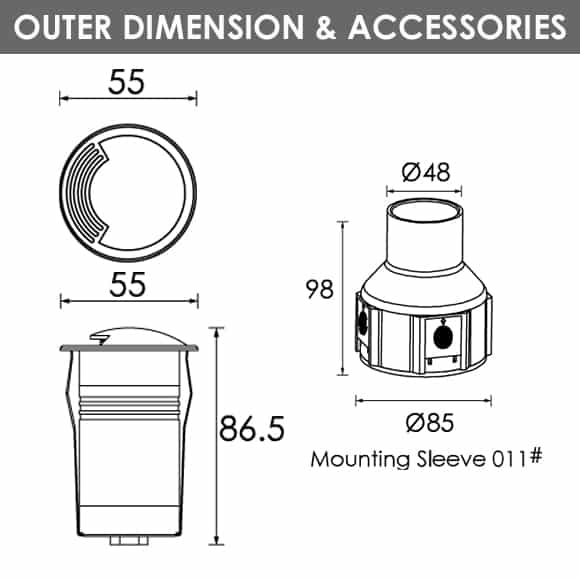

    Mounting Sleeve:
    ABS 011#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)Luminance(LM)IK
    1E2WC0157 A1x2W24V DC | 120 | 24024V=110 | 120V=48 | 240V=2824V=2.6 | 120V=3.1 | 240V=3Cool White = 1.5 | Warm White = 1.310

    IP68 WATERPROOF CONNECTORS

    Buried lights for driveway

    Buried lights for driveway, covered walkway illumination, landscaping lighting and LED outdoor ground lights with dimming support. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperatures for drive over lights are 2000K, 3000K and 6000K.

    These driveway lights come with Triac, PWM, 1-10V & Dali dimming support with an option of in-built drivers to suit any project needs. Available in over 20+ designs, these are high quality fixtures with wattages starting from 0.8W to a maximum of 4W. These fixtures emit light in single, double and quadrangular sides. One can also use a combination of these lights to light up pavements or parking lots.

    Stainless steel front cover also makes them rust proof. One can also use dimming drivers with these LED outdoor ground lights to create infinite lighting effects. Architects use these outdoor LED fixtures in their world class inground lighting projects. These lights are perfect for covered walkway illumination and other areas where you need a little extra light.

    Rugged drive over lights are also used in high-end landscape & garden lighting projects. They can take up to 2 tons of load and have a long LED lifespan due to the high-grade LEDs. They can also highlight trees and shrubs.

    Wattages are low, starting at 0.8W with a maximum of 4W. These walk over lights are IK10 and IP67 rated. Walk over lights can also act as a path finder for driveways and gardens. Color temperatures available are 2000K, 3000K and 6000K.

    Check out our range of outdoor lights for architectural lighting solutions.
