DRIVE OVER LIGHTS

Drive Over Lights - 1E2CA0157 A - Img
1E2CA0157 A - Dia

Product Certification

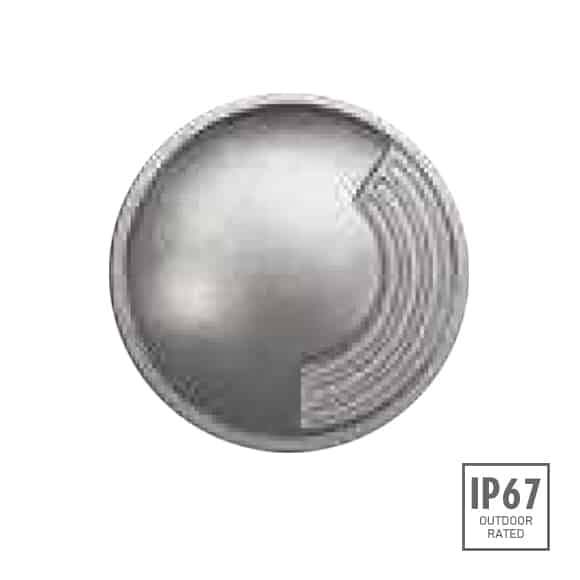

Drive Over Lights - 1E2CA0157 A


IP67 drive over lights with Triac and dali dimming options. Quality certifications, stainless steel front cover, silicone seal. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67 with ABS 065# mounting sleeve. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.

  • Compare us with the best manufacture before you buy our LED outdoor Lighting
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications: 1E2CA0157 A


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Gasket:
    Molding shaped silicone seal
    Operating Temperature:
    -20ËšC~40ËšC
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Mounting Sleeve:
    ABS 065#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)Luminance(LM)IK
    1E2CA0157 A1x2W24V DC | 120 | 24024V=108 | 120V=47 | 240V=2824V=2.5 | 120V=3 | 240V=3Cool White = 4.8 | Warm White = 4.310

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    IP67 drive over lights with Triac and dali dimming options. Quality certifications, stainless steel front cover, silicone seal. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.
