DRIVE OVER LIGHTS

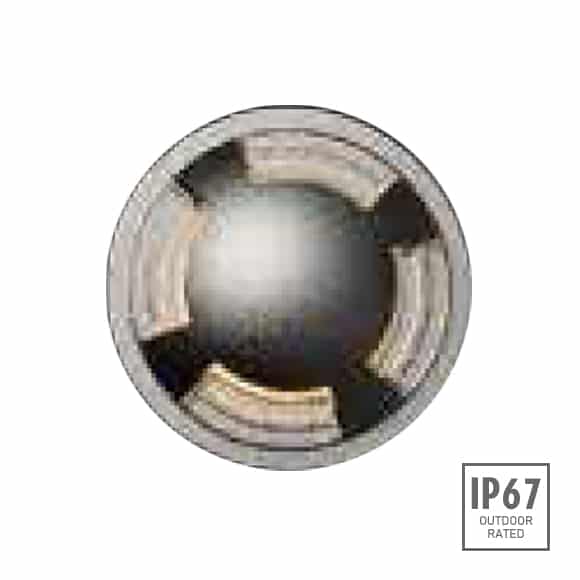

Drive Over Lights - 4E2XA0157
High-quality drive over lights with silicone seal. SS 316 front cover, 24V DC input, dark grey housing. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.
Some of the highlights are as follows:
Material Specifications: 4E2XA0157
- Housing:
- 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Front Cover:
- Hard chromeplated stainless steel SUS 316#
- Load Capacity:
- >2000kg
- Gasket:
- Molding shaped silicone seal
- Operating Temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m
- Mounting Sleeve:
- ABS 062#
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
| Model Number | Light Source | Input Voltge | Operating Current(MA) | Consumption (W) | Luminance(LM) | IK |
|---|---|---|---|---|---|---|
| 4E2XA0157 | 1x2W | 24V DC | 120 | 240 | 24V=108 | 120V=47 | 240V=28 | 24V=2.5 | 120V=3 | 240V=3 | Cool White = 2 | Warm White = 1.7 | 10 |
IP68 WATERPROOF CONNECTORS
Drive over lights with silicone seal. IP67 outdoor rated, SS 316 front cover, 24V DC input, dark grey housing. The housing is Die-casting powder coated aluminum. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Standard color temperature for drive over lights are 2000K, 3000K and 6000K. Drive over lights with silicone seal & corrosion resistant Body. 24V DC input, stainless steel face plate, ETL listed & BIS certification
Check out our range of outdoor lights for architectural lighting solutions: Outdoor LED Lighting
Drive over lights for parking lots, driveways & pavements. Modern look, rust & corrosion-proof fixtures with compact design. If you’re looking for a way to add some extra light to your driveway, consider installing ground lights. Ground lights are a great way to improve the safety and visibility of your driveway, and can also add a touch of style. Positioning ground lights on either side of the driveway is a great way to guide parking and walking at night.
Drive over lights with a variety of color temperatures available, you can find the perfect light to suit your needs. Our selection of products come with BIS certification. These walkover lights are often used in parking lots and walkways and can act as a guide light at night. Drive over lights are strong, rust & corrosion-proof fixtures with a compact design which will give a modern look to your exteriors. The fitting is IP67 rated, giving it protection from rain and projected water.
Drive over lights recessed fixtures are available in a variety of wattages, colors, and styles to suit any need. Made from durable materials, they’re built to last. Drive over lights have a high glass pressure capacity and can withstand extreme temperatures. Standard color temperatures of 2000K/3000K/3500K/4000K/5000K & 6000K are available. Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
Material of Drive over lights fixtures are robust and are made of die-cast aluminium body with powder coated colors. Front cover of the fixtures are made of SUS316 stainless steel. These pathway lights can be used with dimming drivers to create infinite lighting effects. Architects use these outdoor LED fixtures in their world class inground lighting projects. These lights are perfect for illuminating pathways, walkways, and other areas where you need a little extra light. Not sure which light is right for your project? Our team of experts is here to help. Contact us today and we’ll be happy to guide you through the selection process.
