SWIMMING POOL LIGHTS
Swimming Pool Lights - B4AC0157

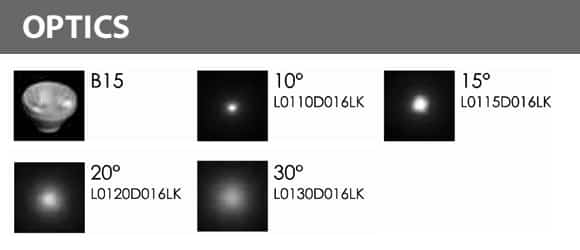

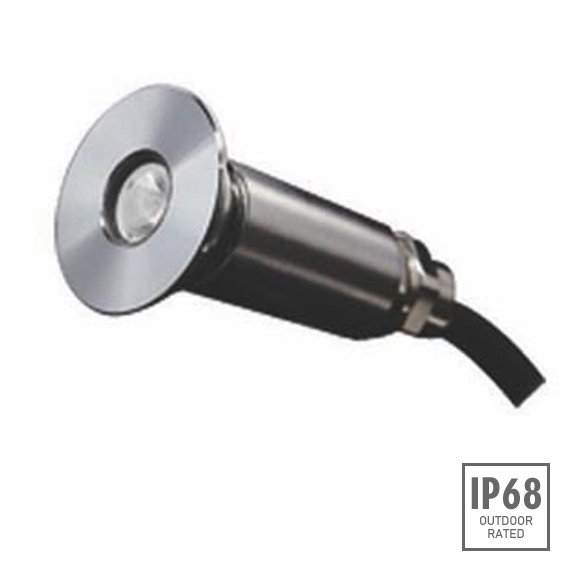

High-grade swimming pool lights for underwater application projects worldwide. The entire swimming pool lights are made of SS316 material to make it rust or corrosion free. High powered LED chips are used as light source in these fixtures. Stainless steel housing with 4mm step tempered glass. Standard color temperature and beam angles for swimming pool lights are 2000K, 3000K and 6000K with lens 10º, 15º, 20º, 30º. Wattages start 2W upwards to 45W.
These lights come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, illumination of pool walls, walkways, floor etc.
Some of the highlights are as follows:
Material Specifications: B4AC0157
- Front cover & Housing:
- Molding shaped stainless steel SUS 316# Stainless Steel Housing
- Light Window:
- Step Tempered glass. T=4mm
- Gasket:
- EPDM Gasket
- Lens:
- Optical lens, efficiency ≥85%
- LED Driver:
- Constant Voltage Input, Constant Current Output
- PCB:
- Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
- Power Cable:
- 24V : H07RN-F 2X1.0mm2 L=3.0m
- Application Environment:
- Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B4AC0157 | 1x2W | B15 | 30⁰ | 24V DC | 24V=87 | 24V=2 | Cool White=102 | Warm White=94 | 07 |
IP68 WATERPROOF CONNECTORS
LED swimming pool lights
LED swimming pool lights for high end projects. SS316 body and color changing LEDs with DMX controls for underwater applications. Trusted by Lighting Designers & Architect for their high end prestigious projects worldwide. Recessed with hard chrome-plated stainless steel housing and 4mm step tempered glass. The lens can be adjusted to 10,15,20 & 30 degree depending on the lighting effect. These lights come with an ingress protection of IP68.
CCT of 2000k/3000k & 6000k with Triac, PWM ,1-10V & Dali dimming options available. Lighting Designers & Architects use these fixtures to create fabulous nighttime aesthetics, Illumination of pool walls, floor etc. These lights make the pool more attractive and helps in highlighting the shape and texture of the pool. These waterproof lights can also be used to create underwater lighting effects. Illuminates the pool area and also cover dark areas. The IP68 connectors help install the lights easily.
