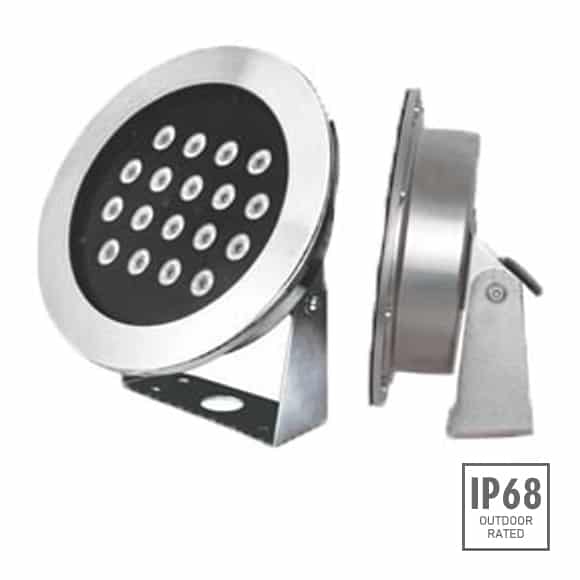

Underwater Light - B5FA1857


Dedicated manufacturers of LED Focus lights & Spotlights for architectural outdoor lighting, garden & landscape.

Underwater lights surface mounted for waterbody applications, to highlight a structure inside water. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.

  • Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005
  • Stunning designs, IP68, Symmetrical & Asymmetrical lens, 1W-50W
  • Compare us with the best outdoor LED lighting manufacturer before buying our products
  • Free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual product catalog of your choice

  • Some of the highlights of the products are as follows:

    Material Specifications: B5FA1857


    Front cover & Housing:
    Hard Cromeplated Molding Shaped Stainless Steel SUS 316L#
    Light Window:
    Step Tempered glass. T=10mm
    Gasket:
    EDPM Gasket
    Lens:
    Optical lens, efficiency ≥85%
    LED Driver:
    Constant Voltage Input, Constant Current Output
    PCB:
    Excellent heat conductivity aluminium, coefficientof heat Conductivity ≥2.0w/mk
    Power Cable:
    24V : H07RN-F 2X1.0mm2 L=3.0m
    Application Environment:
    Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali

    TECHNICAL DATA

    Model#Light SourceLENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B5FA185718x2WB3235⁰24V DC24V=190024V=45.6Cool White=2221 | Warm White=182810

    IP68 WATERPROOF CONNECTORS

    Underwater LED focus light with 18 LEDs/fixture. 10MM tempered glass, color temperature options, high grade stainless steel. Underwater lights surface mounted for waterbody applications, to highlight a structure inside water. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. NICHIA and CREE LED source is used in underwater lights. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Color temperature options for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system. These lights come with 18 LEDs/fixture & 10MM glass.
