UNDERWATER LIGHTS

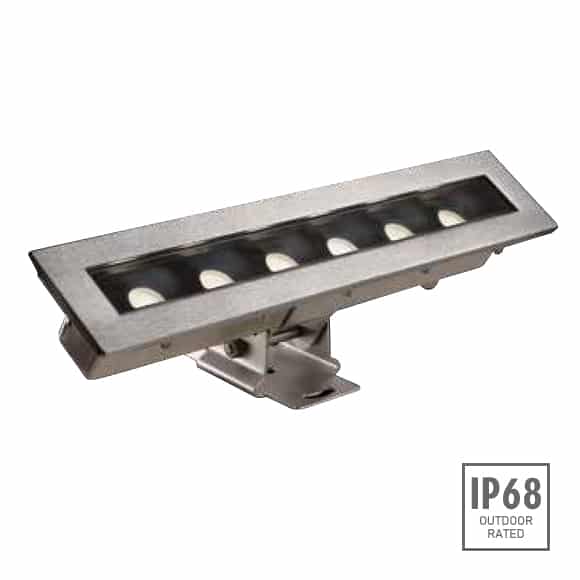

Recessed LED Swimming Pool Light - B5QA0658 Image
Recessed LED Swimming Pool Light - B5QA0658 Diamension

Product Certification

Underwater Lights - B5QA0658


Surface mounted underwater lights with SS316 housing & up to 3yrs warranty. These lights have an LED lifetime of 50,000 burning hours. These fixtures come with a high impact protection rating of IK10 and IP68 protection. Warm white colors can give lumens output of 1324 & cool white can give 1578 lumens. One can use these fixtures for various underwater and swimming pool application.
The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. The lifespan for the fixtures is above 50,000Hrs. With 24VDC the lumen output is high. A narrow and wide beam optics are standard options to chose. Normal color temperatures for underwater lights is 2000K, 3000K and 6000K. RGB and RGBW is also possible with DMX control system.
  • Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005
  • Stunning designs, IP68, Symmetrical & Asymmetrical lens, 1W-50W
  • Compare us with the best outdoor LED lighting manufacturer before you buy our products
  • Free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual product catalog of your choice

    • Some of the highlights of the product are as follows:

    Material Specifications: B5QA0658

    Front cover & Housing:
    Hard Chromeplated Molding Shaped Stainless Steel SUS 316L#
    Light Window:
    PC
    Gasket:
    Silicon Gasket
    Lens:
    Optical lens, efficiency ≥85%
    PCB:
    Excellent heat conductivity aluminum.coefficient of heat Conductivity≥2.0w/mk
    LED Driver:
    Constant Voltage Input, Constant Current Output
    Power Cable:
    H05RN-F 2X1.0mm2 L=3.0m (for single color)
    Application Environment:
    Temperature of water between -20⁰C~40⁰C less than 1 Mtr Depth
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B5QA06586x3W NICHIAB2730⁰24V DC24V=95024V=22.8Cool White = 1578 | Warm White = 132410
    Recessed LED Swimming Pool Light - B5QA0658 Optics
    Recessed LED Swimming Pool Light - R4ZA0129 Color

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Surface mounted underwater lights with SS316 housing & up to 3yrs warranty. These lights have an LED lifetime of 50,000 burning hours. These fixtures come with a high impact protection rating of IK10 and IP68 protection. Available in color temperatures of 2000K/3000K/6000K with 6*3W NICHIA LED. Warm white colors can give lumens output of 1324 & cool white can give 1578 lumens. One can use these fixtures for various underwater and swimming pool application. The fixtures are of high grade stainless steel 316 material, suitable for places near salt-water. A narrow and wide beam optics are standard options to chose. RGB and RGBW is also possible with DMX control system. Surface mounted underwater lights for swimming pool application. 50,000 burning hours with up to 3yrs warranty, SS316 housing & IK10 rating.
