IN-GROUND WALL WASHER

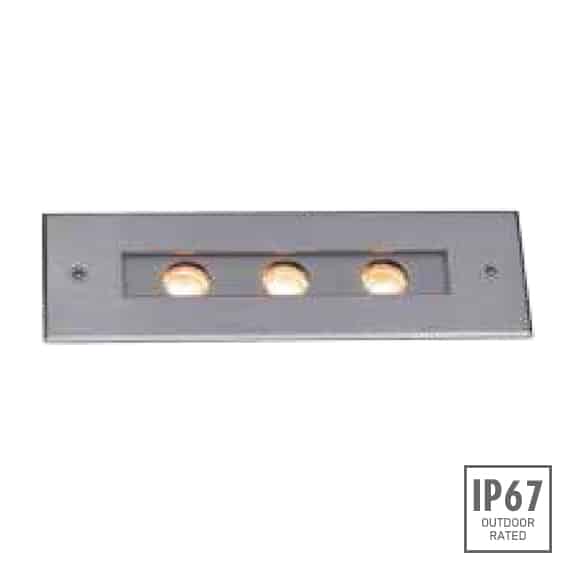

In-ground Wall Washer - S2FL0357
Some of the highlights are as follows:
Material Specifications: S2FL0357
- Front cover & Housing:
- Hard chromeplated stainess steel SUS 316L. 12# Die-casting dark grey powder coated aluminum.T=60-80μm
- Light Window:
- Step tempered glass.T=8mm
- Glass pressure capacity:
- Full area=3251kgs
- Gasket:
- Molding shaped silicone seal
- Cable Gland:
- IP68 PG-9 PA66
- PCB:
- Excellent heat conduvtivity aluminum, coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
- Operating Temperature :
- -20⁰C~40⁰C
- Mounting Sleeve :
- -ABS 076#
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
Model# | Light Source | Lens | Length | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
S2FL0357 | 3x2W | B27 | 195 | 8°x30° | 24V DC | 120V | 240V | 24V=37 | 120V=89 | 240V=46 | 24V=5.7 | 120V=6.2 | 240V=5.7 | Cool White=457 | Warm White=360 | 08 |
