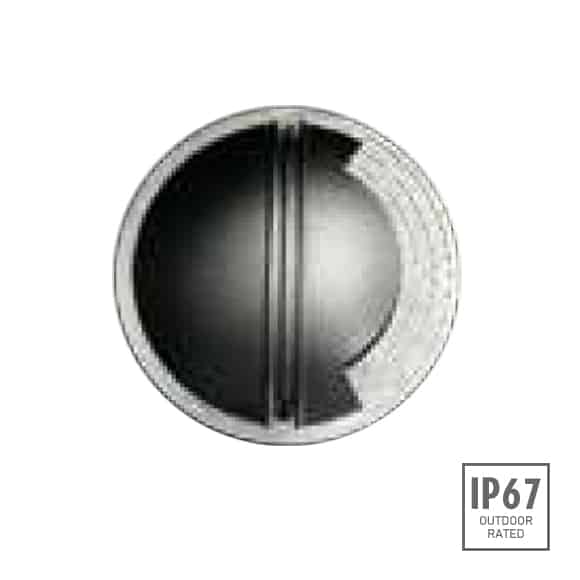

Drive Over Lights - 1E2BFS1009


High quality & rugged Drive over lights, product certifications, Over 30 models, IP67 protected, 10xΦ5 LED, Guaranteed for 3-5 yrs. The housing is made by Die-casting powder coated aluminum in dark grey color. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Stainless steel SUS 316# front cover. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.

  • Compare us with the best manufacturer before you buy our outdoor LED lighting
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: 1E2BFS1009


    Housing:
    12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front Cover:
    Hard chromeplated stainless steel SUS 316#
    Load Capacity:
    >2000kg
    Cable Gland:
    IP68 PG-9 PA66
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Operating Temperature:
    -20˚C~40˚C
    Power Cable:
    H07RN-F 2X1.0mm2 L=0.5m(low voltage) H07RN-F 3X1.0mm2 L=0.5m(high voltage)
    Mounting Sleeve:
    ABS 016#
    Dimmable Support:
    Triac PWM 1-10V Dali
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model NumberLight SourceInput VoltgeOperating Current(MA)Consumption (W)IK
    1E2BFS100910xΦ5 LED24V DC | 120 | 24024V=34 | 120V=25 | 240V=1724V=0.8 | 120V=1.2 | 240V=1.410

    IP68 WATERPROOF CONNECTORS

    High quality & rugged Drive over lights, product certifications, Over 30 models, IP67 protected, 10xΦ5 LED, Guaranteed for 3-5 yrs. The housing is made by Die-casting powder coated aluminum in dark grey color. These lights come with an ingress protection of IP67. Offer Triac, PWM, 1-10V & Dali dimming options. Stainless steel SUS 316# front cover. Standard color temperature for drive over lights are 2000K, 3000K and 6000K.
