INGROUND COB LIGHTS

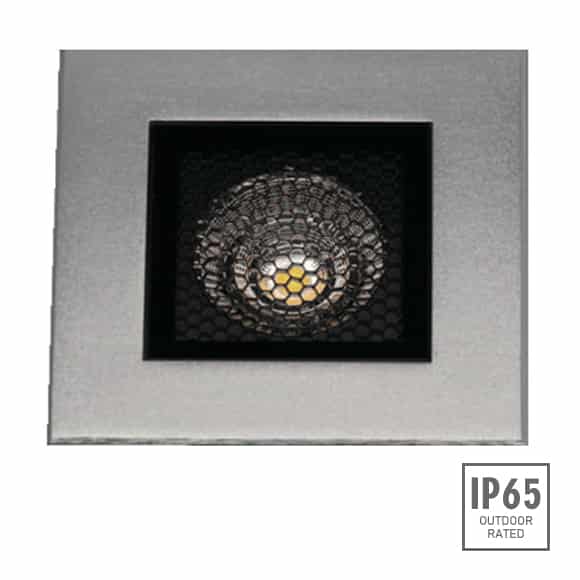

Outdoor LED Inground COB Light - R2HD0126 - Image
Outdoor LED Inground COB Light - R2HD0126 - Diamension

Product Certification

Inground COB Light R2HD0126


Inground COB fixtures for turfs & garden lighting in London. SS front plate, 18⁰ beam, square shaped, anti-glare louvers & IK07 rated. These lights come with powder coated aluminium body and 8mm step tempered glass. The lens options are 18, 25, & 40 degree depending on the lighting effect. These lights come with an ingress protection of IP66.
Inground COB fixtures are available in standard color temperatures of 3000K/3500K/4000K/5000K & 6000K with SS front plate, symmetrical 18⁰ beam. These are square shaped lights which comes with a optional anti-glare louver for diffused lighting options. Major applications of these lights are in turfs & garden, lighting up pathways and driveways.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications R2HD0126


    Front cover & Housing:
    #12 Die-casting dark grey powder coated aluminium, T=60-80μm, Hard chromeplated Stainless Steel SUS 316L#
    Light Window:
    Tempered frosted step glass. T=8mm
    LED:
    NICHIA COB LED
    LED Driver:
    Constant Voltage Input, Constant Current Output
    Gasket:
    Molding Shaped Silicon Seal
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(Low voltage) H05RN-F 3X1.0mm2 L=0.5m(High voltage)
    Operating Temperature:
    -20⁰C~40⁰C
    CCT:
    3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    R2HD01261x6WR525⁰24V DC | 120V | 240V24V=300 | 120V=65 | 240V=3724V=7.2 | 120V=7.7 | 240V=7.8Cool White = 648 | Warm White = 50707
    Outdoor LED Inground COB Light - R2HD0126 - Optics
    Outdoor LED Inground COB Lights - R2IR0125 A

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Inground COB fixtures for turfs & garden lighting in London. SS front plate, 18⁰ beam, square shaped, anti-glare louvers & IK07 rated. These lights come with powder coated aluminium body and 8mm step tempered glass. The lens options are 10, 22, & 38 degree depending on the lighting effect. These lights come with an ingress protection of IP66.
    Inground COB fixtures are available in standard color temperatures of 3000K/3500K/4000K/5000K & 6000K with SS front plate, symmetrical 18⁰ beam. These are square shaped lights which comes with a optional anti-glare louver for diffused lighting options. Major applications of these lights are in turfs & garden, lighting up pathways and driveways.
