OUTDOOR LIGHTS - LED INGROUND CoB LIGHTS



Inground CoB Light - R2DFR0126 | R2DFS0126

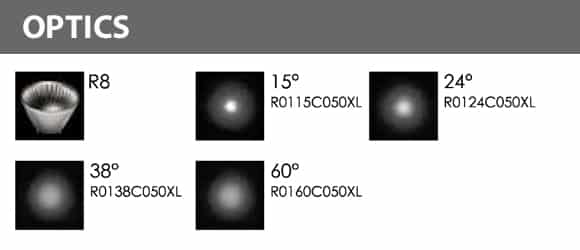

Inground CoB lights for architectural lighting projects. Premium quality LED source and components are used in the products. The front plate for LED inground CoB lights are hard chrome-plated stainless steel and 8mm step tempered glass. Overall a non-corrosive, robust product for outdoor applications. Inground CoB lights come with standard lens of 18, 24, 38 & 60 degree with an ingress protection of IP66. CCT available: 3000K | 6000K
Some of the high lights are as follows:
Material Specifications R2DFR0126 & R2DFS0126
- Front cover & Housing:
- #12 Die-casting dark grey powder coated aluminium, T=60-80μm, Hard chromeplated Stainless Steel SUS 316L#
- Light Window:
- Tempered frosted step glass. T=8mm
- Reflector:
- Opal Reflector efficiency ≥90%
- LED:
- NICHIA COB
- LED Driver:
- Constant Voltage Input, Constant Current Output
- Gasket:
- Molding Shaped Seal
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m(Low voltage) H05RN-F 3X1.0mm2 L=0.5m(High voltage)
- Operating Temperature:
- -20⁰C~40⁰C
- CCT:
- 3000K/6000K
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
R2DFR0126 | 1x7W COB | R8 | 24⁰ | 24V DC | 120V | 240V | 24V=324 | 120V=72 | 240V=40 | 24V=7.7 | 120V=8.5 | 240V=8.5 | Cool White = 921 | Warm White = 744 | 09 |
R2DFS0126 | 1x7W COB | R8 | 24⁰ | 24V DC | 120V | 240V | 24V=324 | 120V=72 | 240V=40 | 24V=7.7 | 120V=8.5 | 240V=8.5 | Cool White = 921 | Warm White = 744 | 09 |


IP68 WATERPROOF CONNECTORS




Inground COB Light India
Outdoor LED Inground COB Light for Architectural Lighting Projects in India. Most trusted brand by lighting designers in India. LED InGround COB light with hard chrome-plated stainless steel housing and 8mm step tempered glass. The lens options are 15, 24, 38 & 60 degree depending on the lighting effect. These lights come with an ingress protection of IP66.
CCT of 2000k/3000k & 6000k available. LED Inground lights is a popular type of Outdoor LED lighting used by Lighting Designers & Architects to highlight walls, columns, create fabulous night time aesthetics accessibility, and other special social events for gardens & landscapes, facade & outdoor lighting with smart lighting effects.
