Outdoor Floor Lights
Outdoor Floor Lights RB2CCAR0125

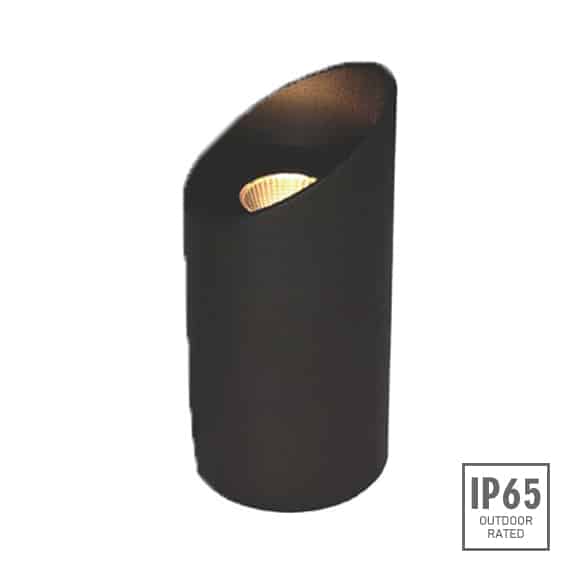

Outdoor floor lights for patio walkway lights, architectural lighting, inground light, landscape & walkway lights in Oman. Hard chrome-plated stainless steel housing and 4mm step tempered glass. The lens is adjustable to 18, 24 & 32 degree prior to installation depending on the lighting effect. These lights come with an ingress protection of IP67.
It is also referred to as in-floor lighting, especially when it refers to similar lighting done indoors. Multiple color temperatures available with DALI dimming support. Outdoor floor light is a robust product used by lighting designers & architects to highlight walls columns & create fabulous night time aesthetics for lighting projects. Powder coated aluminium body and stainless steel front cover makes the body corrosion proof and extends its life.
Some of the highlights are as follows:
Material Specifications RB2CCAR0125
- Front cover & Housing:
- #12 Die-casting dark grey powder coated aluminium, Hard cromeplated stainless steel SUS 316#
- Light Window:
- Tempered frosted step glass. T=4mm
- Reflector:
- Opal Reflector efficiency ≥90%
- LED:
- Multi chip on board LED
- LED Driver:
- Constant Voltage Input, Constant Current Output
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m(Low voltage) H05RN-F 3X1.0mm2 L=0.5m(High voltage)
- Operating Temperature:
- -20⁰C~40⁰C
- CCT:
- 3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| RB2CCAR0125 | 1x5W | R7 | 32⁰ | 24V DC | 120V | 240V | 24V=265 | 120V=52 | 240V=32 | 24V=6.1 | 120V=6.5 | 240V=6.7 | 460 | 06 |
IP68 WATERPROOF CONNECTORS
Outdoor floor lights
Outdoor floor lights for patio walkway lights, architectural lighting, inground light, landscape & walkway lights in Oman. Hard chrome-plated stainless steel housing and 4mm step tempered glass. The lens is adjustable to 18, 24 & 32 degree prior to installation depending on the lighting effect. These lights come with an ingress protection of IP67.
Multiple color temperatures available with DALI dimming support. Patio walkway lights is a robust product used by lighting designers & architects to highlight walls columns & create fabulous night time aesthetics for lighting projects in Oman. There are many benefits of using these outdoor lights. For one, they are very energy efficient. Plus, they emit much brighter light, so you’ll be able to see better at night.
These in-floor lights also enhance the park or garden area and give a modern light effect. LED Inground lights are a popular type of outdoor LED lighting used by lighting designers & architects to highlight walls, columns, create fabulous night time aesthetics or as a path finder. High quality In-ground lights with chrome plated stainless steel housing and 8-10mm tempered glass. One can also use the fixture with in-built driver.

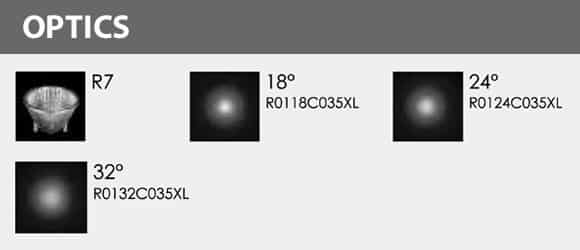

The lens options are 10, 12, 15, 18, 22, 24, 25, 32, 35, 38, 40, 45, 60 degrees depending on the lighting effect. These light fixtures come with ingress protection of IP65-IP67. Options for CCT are 2000K/ 3000K & 6000K with Triac, PWM, 1-10V & Dali dimming. Outdoor Inground COB Light – Premium quality LED source and components makes it a great choice for architectural lighting. Inground COB lights also come in symmetrical & asymmetrical lens with narrow to wide beam & ingress protection of IP65-IP67. These landscape and walkway lights are also applicable for high end lighting projects worldwide with Warranties up to 3 years. Since they are made with high-quality materials, you can rest assured that they will withstand the elements and last for years to come.
