INGROUND COB LIGHT

In-ground COB Light - B2KFR0176 Image

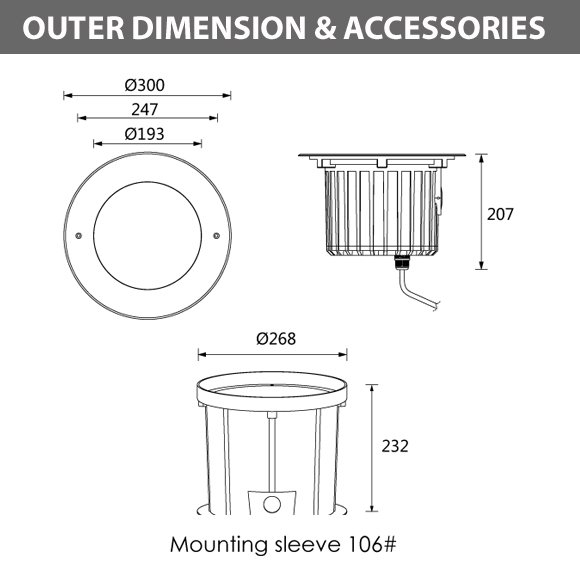

In-ground COB Light - B2KFR0176 Dia

Product Certification

Inground COB Light B2KFR0176

High-power inground COB light for walkways or driveways. CREE COB LED, 40W power, Grey housing & 15°/25°/36° beam with built-in driver. The housing is made of Die-casting powder coated aluminum & stainless steel SUS 316L# front cover. High-power inground COB light is applicable for lighting in walkways, driveway, garages.
These lights are robust and are often found in public areas. The pressure load can be as much as 5356 kgs. The luminaires can be driven over by vehicles with pneumatic tyres. These fixtures come with a 10mm safety glass.
  • Compare us with the best manufacturer before buying our outdoor LED lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:


    Material Specifications B2KFR0176


    Housing:
    12# Die-casting grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Front cover:
    Hard chromeplated stainless steel SUS 316L#
    Glass:
    Step tempered glass.T=10mm
    Reflector:
    Optical Reflector efficiency≥90%
    LED:
    CREE COB
    Glass pressure capacity:
    Full area = 5356 kgs
    Cable gland:
    IP68 PG-13.5 PA66
    Gasket:
    Molding shaped seal
    LED Driver:
    Constant Voltage Input, Constant Current Output
    Power Cable:
    H07RN-F 3X1.5mm L= 0.5m
    Operating Temperature:
    -20⁰C~40⁰C
    Mounting sleeve:
    ABS 106#
    CCT:
    3000K/5000K
    TECHNICAL DATA
    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B2KFR01761×40W COBB5715°/25°/36°120V | 240V120V=372 | 240V=187120V=45 | 240V=44.5Cool White = 3565 | Warm White = 317310

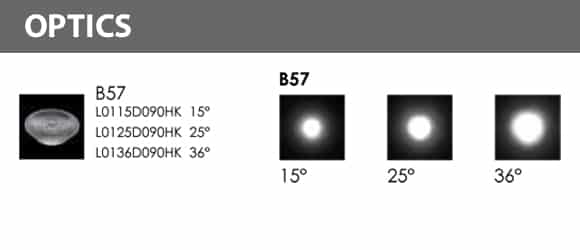

    In-ground COB Light - B2KFR0176 Optics
    In-ground COB Light - B2KFR0176 Color
    IP68 WATERPROOF CONNECTORS
    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    High-power inground COB light for walkways or driveways. CREE COB LED, 40W power, Grey housing & 15°/25°/36° beam with built-in driver. The housing is made of Die-casting powder coated aluminum & stainless steel SUS 316L# front cover. 40W power, dark grey housing with CREE LED chip. High-power inground COB light is applicable for lighting in walkways, driveway, garages.
    These lights come with CREE COB LED in symmetrical 15°/25°/36° beam with built-in driver option. These lights are robust and are often found in public areas. The pressure load can be as much as 5356 kgs. The luminaires can be driven over by vehicles with pneumatic tyres.
