LED FOCUS LIGHT

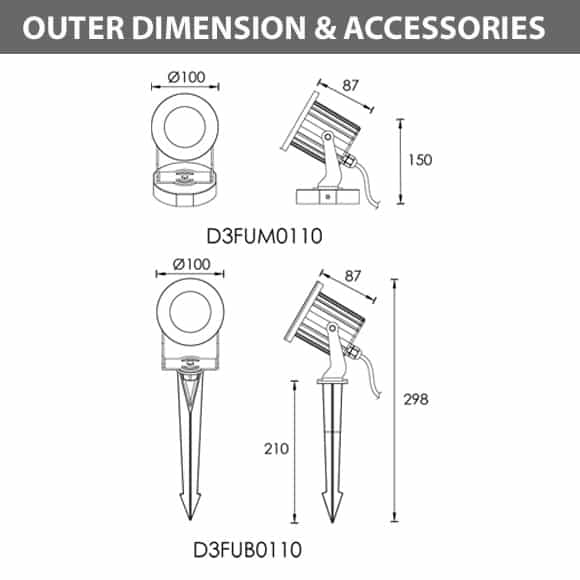

LED Focus Light - D3FUM0110 - D3FUB0110 Dia

Product Certification

LED Focus Light D3FUM0110 | D3FUB0110


Focus Light Housing For Outdoor Lighting Fixtures With SS Cover. Powder coated aluminium housing, SS 316 front cover, spike available. Available with base or spike for surface mounting or garden lighting application. Powder coated aluminium housing with sanded dark grey or matte black body color. One can use GU-10 halogen or GU-10 LED lamp. Architects use these high quality housing for their lighting projects. Front cover is made of high grade stainless steel

  • Compare us with the best manufacture before you buy our LED outdoor Lighting
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications: D3FUM0110 | D3FUB0110


    Housing:
    12# Die-casting dark grey powder coated aluminium T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Tempered glass.T=3mm
    Cable Gland:
    IP-68 PG-9 PA66
    Front cover:
    Hard chrome-plated stainless steel SUS 316L#
    Bracket:
    Powder coated aluminum
    Gasket:
    Tooling shaped seal
    Power Cable:
    H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    Mounting Base:
    3Powder coated die-casting aluminum
    TECHNICAL DATA
    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D3FUM0110--------
    D3FUB0110--------

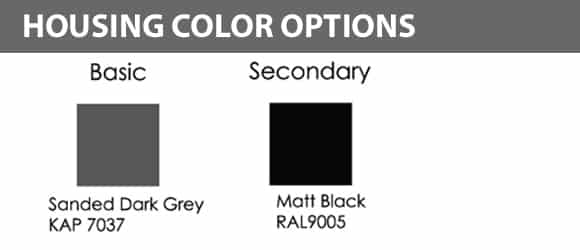

    LED Focus Light - D3FUM0110 - D3FUB0110 Color

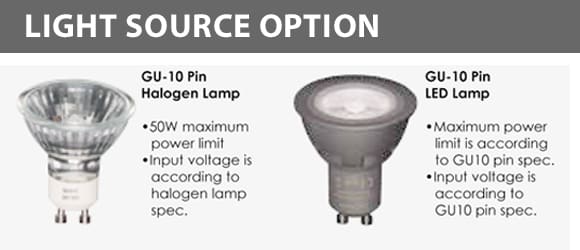

    LED Focus Light - D3FUM0110 - D3FUB0110 Optics
    IP68 WATERPROOF CONNECTORS
    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
