LED FOCUS LIGHT

LED Wall Mounted Focus & Spot Light

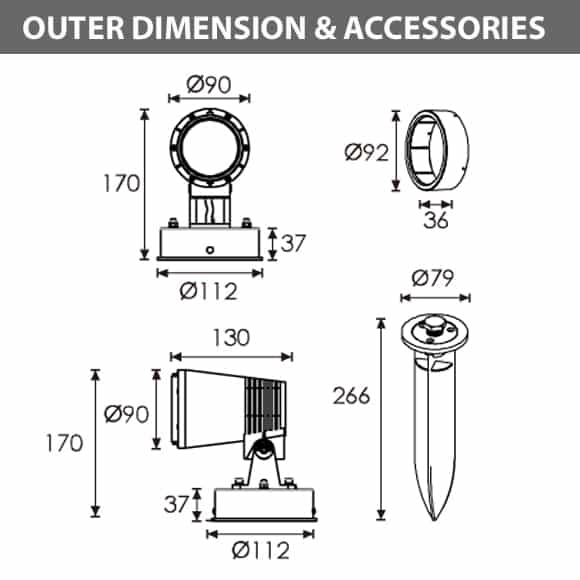

LED Wall Mounted Focus & Spot Light - B3DJM0360 - Diamension

Product Certification

LED Focus Light B3DJM0360


Architectural Focus Light with 3*4W power and IK06 Rating. IP66 protection, narrow beam & In-built driver with dimming support. These fixtures are met with highest quality standards and are designed to withstand extreme temperatures. Available in basic sanded dark grey housing with secondary color options of silver & matte black.
CCT of 2000K/3000K/6000K, narrow beam & In-built driver with dimming support can be provided. Best quality, competitive prices & IP66 protection for outdoor use. These small fixtures can be placed in narrow spaces to light up a specific area. Beam direction can be adjusted before installing the fixture to get desired lighting effect.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications B3DJM0360


    Front cover & Housing:
    12# Die-casting dark grey powder coated aluminium
    Lens Window:
    Tempered glass. T=4mm
    LED Driver:
    Constant Voltage Input, Constant Current Output
    LED:
    NICHIA
    Power Cable:
    24V : H05RN-F 2X1.0mm2 L=2.0m(low voltage) 120|240V : H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B3DJM03603x4WB33D20⁰120 | 240120V=118 | 240V=65120V=14.5 | 240V=15.1Cool White=1230 | Warm White=101806
    LED Wall Mounted Focus & Spot Light - B3DJM0360 - Optics
    LED Landscape Focus & Spot Light - Color - B3AB0157

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
