DIMMABLE LANDSCAPE FOCUS LIGHT



Dimmable Landscape Focus Light B3XBM0127


Dimmable Landscape Focus Light With OSRAM LED For Private Gardens. 2000K-6000K color temperature & DALI dimming for infinite lighting effects. These surface mounted lights come in standard color temperatures of 2000K-6000K with OSRAM LED & DALI dimming support for infinite lighting effects. These fixtures come with COB LED and adjustable beam direction to achieve the perfect lighting for any landscape project.

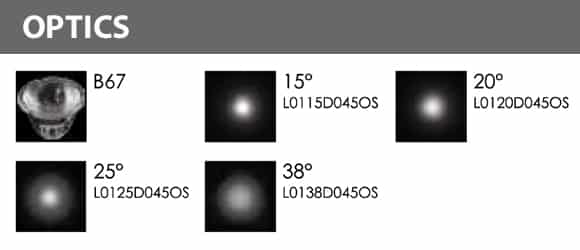

Beam angle of 30⁰ & 45⁰ can be provided with waterproof connectors for uniform lighting. Housing is made of die-cast aluminium with powder coated color options. Available in low voltage and high voltage options of 24V & 240V with IK07 and IP66 outdoor rating.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the high lights are as follows:

    Material Specifications B3XBM0127


    Front cover & Housing:
    12# Die-casting dark grey powder coated aluminium
    Lens Window:
    Tempered glass. T=4mm
    LED Driver:
    ConstantVolatage Input, Constant Current Output
    Lens:
    Optical lens, efficiency ≥85%
    LED:
    OSRAM
    Operating Temperature:
    -20⁰C ~ 40⁰C
    Power Cable:
    H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B3XBM01271x8W COBB1430⁰ 24V DC | 120 | 24024V=411 | 120V=88 | 240V=5024V=9.8 | 120V=10.8 | 240V=10.8Cool White=761 | Warm White=69607

    IP68 WATERPROOF CONNECTORS

    Dimmable Landscape Focus Light With high grade LED For Private Gardens. 2000K-6000K color temperature & DALI dimmable for infinite lighting effects. These surface mounted lights come in standard color temperatures of 2000K-6000K with high grade LED & DALI dimmable for infinite lighting effects. These fixtures come with COB LED and adjustable beam direction to achieve the perfect lighting for any landscape project. Beam angle of 30⁰ & 45⁰ can be provided with waterproof connectors for uniform lighting. Housing is made of die-cast aluminium with powder coated color options. Dimmable landscape focus light available in low voltage and high voltage options of 24V & 240V with IK07 and IP66 outdoor rating.
