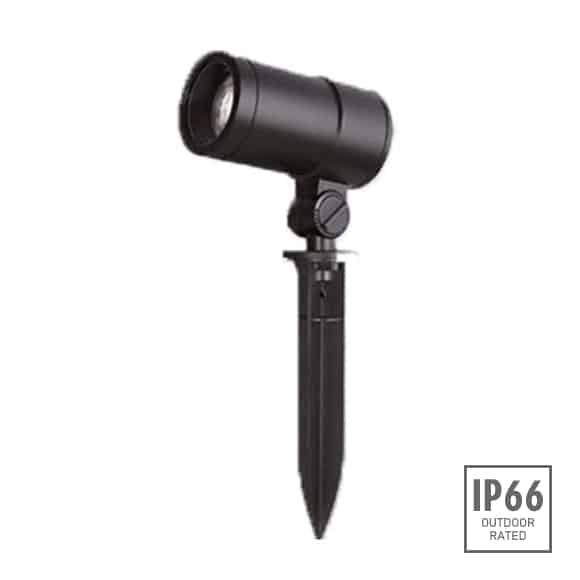

LED FOCUS LIGHT



LED Focus Light - B3TMB0158 | B3TNB0126 | B3TOB0128 | B3TPB0171
The very best product at competitive price high-quality with widest ranges (50+ designs) & extensive product depth: material, finish colors, beam angles, light source & accessories, the newest include the RGBW range of Outdoor Focus Light fixtures with DMX controls
Outdoor LED Focus light is one of the majorly used types of Outdoor lighting fixtures used by Lighting Designers & Architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting
Some of the high lights are as follows:

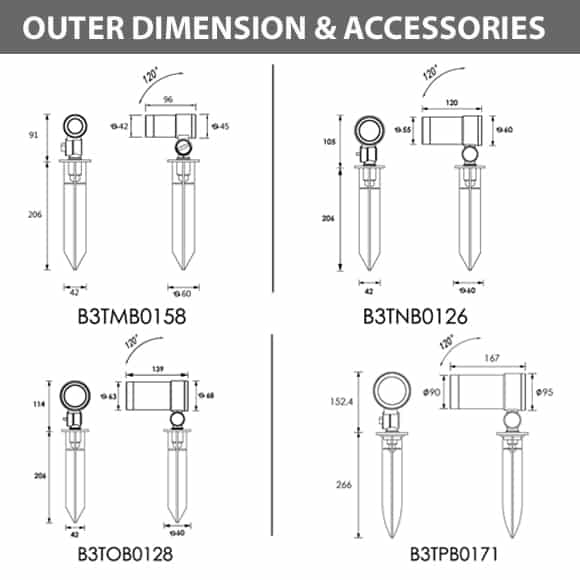

Material Specifications B3TMB0158 | B3TNB0126 | B3TOB0128 | B3TPB0171
- Front cover & Housing:
- 12# Die-casting dark grey powder coated aluminium, T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Lens Window:
- Tempered glass. T=4mm
- Lens/Reflector:
- Optical lens, efficiency ≥85%
- Gasket:
- Tooling shaped seal
- LED Driver:
- Constant Voltage Input, Constant Current Output
- LED:
- NICHIA
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.3m(low voltage) H05RN-F 3X1.0mm2 L=0.3m(high voltage)
- CCT:
- 3000K/6000K
- Spike:
- ABS spike 10A(B3TMB0158/B3TNB0126/B3TOB0128) ABS spike 7H(B3TPB0171)
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
B3TMB0158 | 1x3W NICHIA | B33D | 20⁰ | 24V DC | 120V | 240V | 24V=170 | 120V=36 | 240V=22 | 24V=4.1 | 120V=4.3 | 240V=4.3 | Cool White = 305 | Warm White = 274 | 06 |
B3TNB0126 | 1x6W NICHIA | B51 | 28⁰ | 24V DC | 120V | 240V | 24V=325 | 120V=60 | 240V=35 | 24V=7.8 | 120V=7.4 | 240V=7.4 | Cool White = 740 | Warm White = 667 | 06 |
B3TOB0128 | 1x10W NICHIA | B52 | 24⁰ | 24V DC | 120V | 240V | 24V=480 | 120V=107 | 240V=55 | 24V=11.5 | 120V=12.6 | 240V=12.3 | Cool White = 1200 | Warm White = 1315 | 06 |
B3TPB0171 | 1x20W NICHIA | B56 | 25⁰ | 24V DC | 120V | 240V | 24V=958 | 120V=180 | 240V=93 | 24V=23 | 120V=25 | 240V=25.8 | Cool White = 1494 | Warm White = 2071 | 06 |


IP68 WATERPROOF CONNECTORS
