LED FOCUS LIGHT

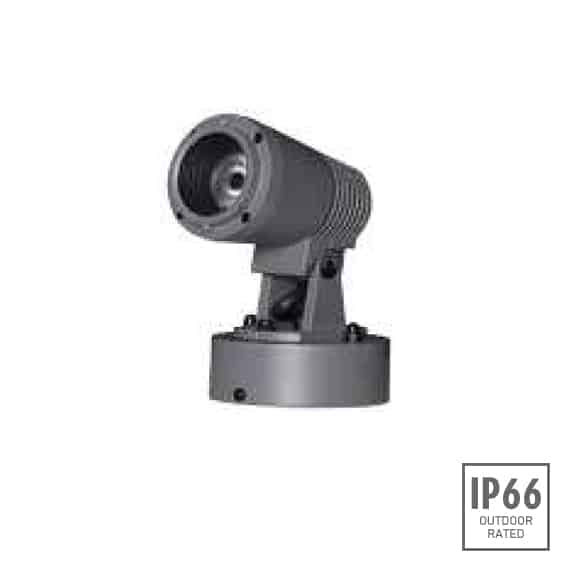

LED Wall Mounted Focus & Spot Light - B3EJM0126 - Image

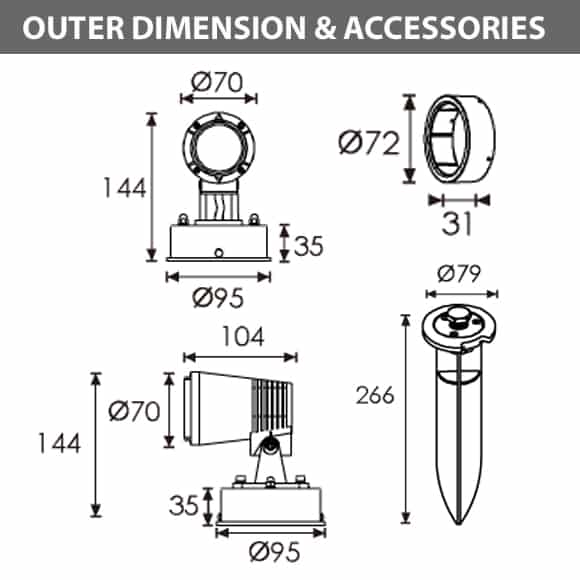

LED Wall Mounted Focus & Spot Light - B3EJM0126 - Diamension

Product Certification

LED Focus Light B3EJM0357


Aluminium focus lighting fixtures for use in high-end projects. 15⁰ or 30⁰ beam, IK05, 6W NICHIA LED for infinite lighting effects. These mini focus lights are perfect to light up narrow spaces or highlight a specific area. NICHIA LED's are used in these fixtures with high-quality aluminium body. IP68 water proof connectors ensure seepage proof installation.
Architects use these fixtures for world class lighting projects worldwide. These fixtures are available in various sizes and wattages. One can combine fixtures with different sizes, wattage and beam angles to create a beautiful lighting effect giving their outdoors a modern look.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

    • Some of the highlights are as follows:

    Material Specifications B3EJM0357


    Front cover & Housing:
    12# Die-casting dark grey powder coated aluminium
    Lens Window:
    Tempered glass. T=4mm
    LED Driver:
    Constant Voltage Input, Constant Current Output
    LED:
    NICHIA
    Power Cable:
    24V : H05RN-F 2X1.0mm2 L=2.0m(low voltage) 120|240V : H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    CCT:
    2000K/3000K/6000K

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B3EJM03573x2WA2430⁰24V DC | 120 | 24024C=300 | 120V=110 | 240V=6524V=7.2 | 120V=8.3 | 240V=8.5Cool White=298 | Warm White=26305

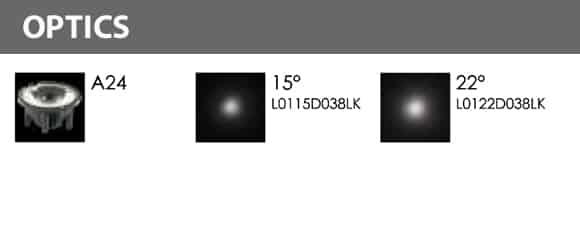

    LED Wall Mounted Focus & Spot Light - B3EJM0126 - Optics
    LED Landscape Focus & Spot Light - Color - B3AB0157

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Aluminium focus lighting fixtures for use in high-end projects. 15⁰ or 30⁰ beam, IK05, 6W NICHIA LED for infinite lighting effects. These mini focus lights are perfect to light up narrow spaces or highlight a specific area. NICHIA LED’s are used in these fixtures with high-quality aluminium body. IP68 water proof connectors ensure seepage proof installation. Architects use these fixtures for world class lighting projects worldwide. These fixtures are available in various sizes and wattages. One can combine fixtures with different sizes, wattage and beam angles to create a beautiful lighting effect giving their outdoors a modern look. Aluminium focus lighting fixtures with 15⁰ or 30⁰ beam, IK05, 6W NICHIA LED for use in high-end projects.
