ARCHITECTURAL GARDEN FOCUS LIGHT

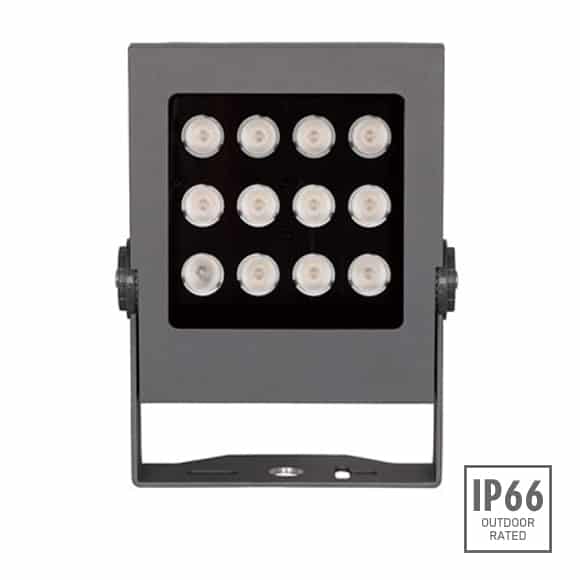

Architectural Garden focus Light B3PB1257


Architectural garden focus light with IK08 & IP66 rating. Up to 3years warranty, 1-10V dimming & BIS certified for high end lighting projects. These spot lights come with dimming support. One can combine various beam angles & color temperatures with dimming drivers to create amazing lighting effects. Available with up to 3years warranty and BIS certified for high end lighting projects.
Architectural garden focus light uses high quality OSRAM LED with 12x1.5W power which gives balanced and sharp light throw. IK08 & IP66 rating with standard CCT's and aluminium body. A versatile and perfect choice for all your landscape and facade lighting projects.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the highlights are as follows:

    Material Specifications B3PB1257


    Front cover & Housing:
    12# Die-casting dark grey powder coated aluminium
    Bracket:
    Powder coated aluminium
    Lens Window:
    Tempered glass. T=4mm
    Lens:
    Optical lens, efficiency ≥90%
    LED:
    OSRAM
    Power Cable:
    H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PVM 1-10V Dali

    TECHNICAL DATA

    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    B3PB125712x1.5WB33D20⁰ 24V DC | 120 | 24024V=1051 | 120V=143 | 240V=7924V=25 | 120V=17 | 240V=18Cool White=1818 | Warm White=137308

    IP68 WATERPROOF CONNECTORS

    Architectural garden focus light with IK08 & IP66 rating. Up to 3years warranty, 1-10V dimming & BIS certified for high end lighting projects. These spot lights come with dimming support. One can combine various beam angles & color temperatures with dimming drivers to create amazing lighting effects. Available with up to 3years warranty and BIS certified for high end lighting projects. Architectural garden focus light uses high quality OSRAM LED with 12×1.5W power which gives balanced and sharp light throw. IK08 & IP66 rating with standard CCT’s and aluminium body. A versatile and perfect choice for all your landscape and facade lighting projects.

    Focus lights for architectural lighting:
