ARCHITECTURAL FOCUS LIGHTS
Architectural Focus Lights B3BB0625
Architectural focus lights for landscape lighting in Poland. High quality CREE LED, ISO9001 & TUV Certified with high voltage input. These fixtures come with in-built driver and high glass pressure capacity. IP66 outdoor rated fixture with adjustable beam direction to achieve the desired lighting effect. Architectural focus lights with high quality CREE LED & international certifications like ISO9001 & TUV certified for lighting projects worldwide.

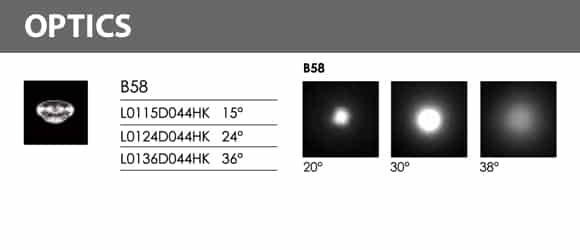

Available with symmetrical beam angle of 20⁰/30⁰/38⁰ in powder coated colors of sanded grey, silver or matte black. High powered 30W LED fixture with 3000K/6000K CCT, high lumens output & high voltage input is perfect for architectural facade and landscape lighting in Poland.
Some of the highlights are as follows:
Material Specifications - B3BB0625
- Front cover & Housing:
- 12# Die-casting dark grey powder coated aluminium, T=60-80μm. Adhesion of ISO Class 1/ASTM class 4B, Hard chrome-plated Stainless steel (SUS 304#, 316# optional)
- Light Window:
- Tempered glass. T=4mm
- Reflector:
- Optical Reflector efficiency ≥90%
- LED:
- CREE
- Bracket:
- Powder coated Aluminium,. T=2.5mm
- Power Cable:
- H05RN-F 3X1.0mm2 L=2.0m(high voltage)
- CCT:
- 3000K/6000K
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| B3BB0625 | 6x5W | B58 | 30⁰ | 240V | 240V=172 | 240V=40 | 3206 | 09 |
IP68 WATERPROOF CONNECTORS
Architectural focus lights for landscape lighting in Poland. High quality CREE LED, ISO9001 & TUV Certified with high voltage input. These fixtures come with in-built driver and high glass pressure capacity. IP66 outdoor rated fixture with adjustable beam direction to achieve the desired lighting effect. Architectural focus lights with high quality CREE LED & international certifications like ISO9001 & TUV certified for lighting projects worldwide. Available with symmetrical beam angle of 20⁰/30⁰/38⁰ in powder coated colors of sanded grey, silver or matte black. High powered 30W LED fixture with 3000K/6000K CCT, high lumens output & high voltage input is perfect for architectural facade and landscape lighting in Poland.
Focus lights for lighting projects:
https://www.est.net.in/outdoor-led-lighting/led-focus-light/led-focus-light-fb3bqb0657/
