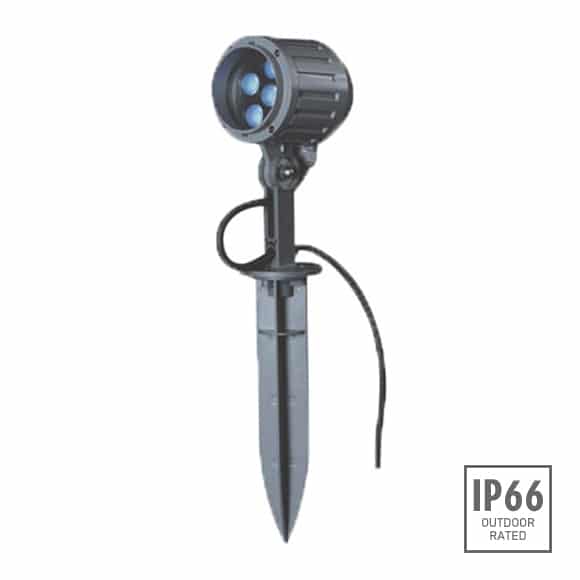

LED FOCUS LIGHT



LED Focus Light - FB3BQB0657
The very best product at competitive price high-quality with widest ranges (50+ designs) & extensive product depth: material, finish colors, beam angles, light source & accessories, the newest include the RGBW range of Outdoor Focus Light fixtures with DMX controls
Outdoor LED Focus light is one of the majorly used types of Outdoor lighting fixtures used by Lighting Designers & Architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting
Some of the high lights are as follows:
Material Specifications FB3BQB0657
- Front cover & Housing:
- 12# Die-casting dark grey powder coated aluminium

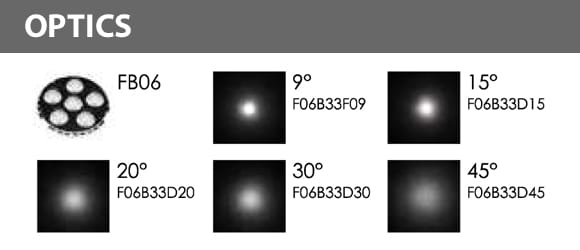

- Lens:
- All-in-one optical lens, efficiency≥85%
- Light Window:
- Tempered glass.T=4mm
- LED:
- OSRAM or NICHIA
- PCB:
- Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating temperature:
- -20˚C~40˚C
- Power Cable:
- H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
- CCT:
- 2000K/3000K/6000K
TECHNICAL DATA
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
FB3BQB0657 | 6x1.5W | FB06 | 20⁰ | 24V DC | 120/240 | 24V=550 | 120V=98 | 240V=53 | 24V=13.2 | 120V=12 | 240V=12 | Cool White=1004 | Warm White=775 | 05 |


IP68 WATERPROOF CONNECTORS
