INGROUND COB WALL WASHER

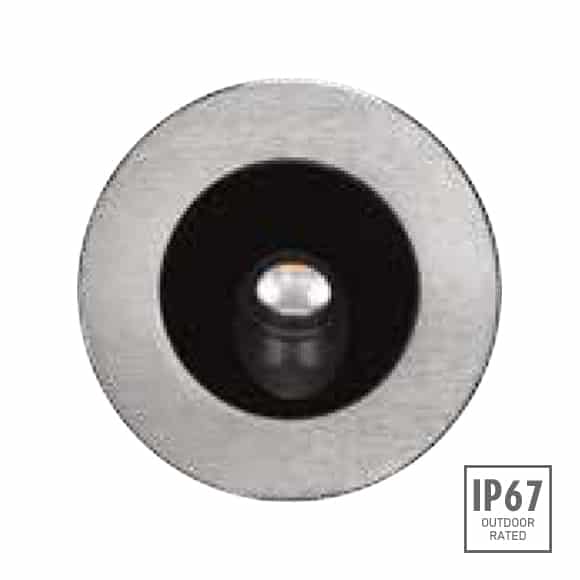

Inground COB Wall washer RC2CPT0125

Recessed Inground wall washer with 1X5W LED & 30º beam optics. Multi chip LED, 2700K to 6000K CCT for wall lighting applications. ABS 085# mounting sleeve, powder coated colors & symmetric beam. LED Inground lights is a popular type of outdoor LED lighting used by lighting designers & architects to highlight walls, columns, create fabulous night time aesthetics.
The housing is made of Die-casting powder coated aluminum. Recessed inground wall washer comes with IK06 rating and is available in sanded dark grey housing with DC 24V & AC 240V option. Accessories with IP68 connectors available for easy installation.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click each of the boxes below and download individual products of your choice

  • Some of the highlights are as follows:


    Material Specifications: RC2CPT0125


    Housing:
    12# Die-casting grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Step tempered glass.T=4mm
    Reflector:
    Optical Reflector efficiency≥90%
    Glass pressure capacity:
    Full area=5373kgs
    Gasket:
    Molding shaped silicone seal
    LED:
    Multi chip on board LED
    LED Driver:
    Constant Voltage Input, Constant Current Output
    Power Cable:
    24V: Input: H05RN-F 2×1.0mm2 L=0.5M (low voltage) 100/240V: H05RN-F 3×1.0mm2 L=0.5M (high voltage)
    Operating Temperature:
    -20⁰C~40⁰C
    Mounting sleeve:
    ABS 085#
    CCT:
    3000K-5000K
    Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    RC2CPT01251X5W COBR2430º24V DC | 120V | 240V24V=233 | 120V=49 | 240V=3124V=5.6 | 120V=5.8 | 240V=6.4Cool White = 375 | Warm White = 35506

    Ground lights for exterior ground lighting & LED driveway lighting with 1X5W LED & 30º beam optics. Multi chip LED, 2700K to 6000K CCT for wall lighting applications. ABS 085# mounting sleeve, powder coated colors & symmetric beam. LED Inground lights is a popular type of outdoor LED lighting used by lighting designers & architects to highlight walls, columns, create fabulous night time aesthetics.
    The housing is made of Die-casting powder coated aluminum. Recessed inground wall washer comes with IK06 rating and is available in sanded dark grey housing with 2700K to 6000K CCT, multi chip LED, 1X5W LED & 30º beam optics. DC 24V & AC 240V option available with IP68 connectors for easy installation.

    Similiar Page : Outdoor LED Inground COB Lights

    Dedicated manufacturers of COB inground lights for architectural outdoor lighting, garden & landscape.

    Ground lights for exterior ground lighting & LED driveway lighting with 8-10mm glass, NICHIA COB LED, die-cast aluminium body, non corrosive IP65-IP67 outdoor rated fixtures. LED Inground lights are a popular type of outdoor LED lighting used by lighting designers & architects to highlight walls, columns, create fabulous night time aesthetics or as a path finder.

    Ground lights for exterior ground lighting & LED driveway lighting with chrome plated stainless steel housing and 8-10mm tempered glass.

    The lens options are 10, 12, 15, 18, 22, 24, 25, 32, 35, 38, 40, 45, 60 degrees depending on the lighting effect.

    These light fixtures come with ingress protection of IP65-IP67.

    Options for CCT are 2000K/ 3000K & 6000K with Triac, PWM, 1-10V & Dali dimming.

    Ground lights LED source and components are used in the products. Inground CoB lights come in symmetrical & asymmetrical lens with narrow to wide beam & ingress protection of IP65-IP67. These IP65 to IP67 fixtures are applicable for high end lighting projects worldwide with Warranties up to 3years.

    Product & Manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.

    Over 20+ stunning designs. IP65-IP67, Symmetrical & Asymmetrical lens, 1W-50W.

    Compare us with the best inground light manufacturer before buying our LED outdoor Ground lights products.

    A free installation guide is provided with each product.

    Check out the fascinating designs, quality, and prices.
