INGROUND CoB WALL WASHER



In-ground CoB Wall washer - RC2CPR0125 | RC2CPS0125

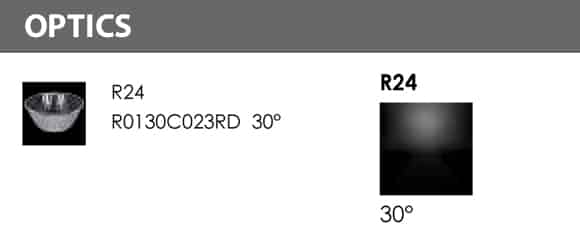

Inground CoB wall washer with R24 30º lens, multi chip on board LED, 3000K/5000K CCT, optical reflector & powder coated housing. LED Inground lights is a popular type of outdoor LED lighting used by lighting designers & architects to highlight walls, columns, create fabulous night time aesthetics.
Some of the highlights are as follows:
Material Specifications: RC2CPR0125 | RC2CPS0125
- Housing:
- 12# Die-casting grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
- Light Window:
- Step tempered glass.T=4mm
- Reflector:
- Optical Reflector efficiency≥90%
- Glass pressure capacity:
- Full area=5373kgs
- Gasket:
- Molding shaped silicone seal
- LED:
- Multi chip on board LED
- LED Driver:
- Constant Voltage Input, Constant Current Output
- Power Cable:
- 24V: Input: H05RN-F 2×1.0mm2 L=0.5M (low voltage) 100/240V: H05RN-F 3×1.0mm2 L=0.5M (high voltage)
- Operating Temperature:
- -20⁰C~40⁰C

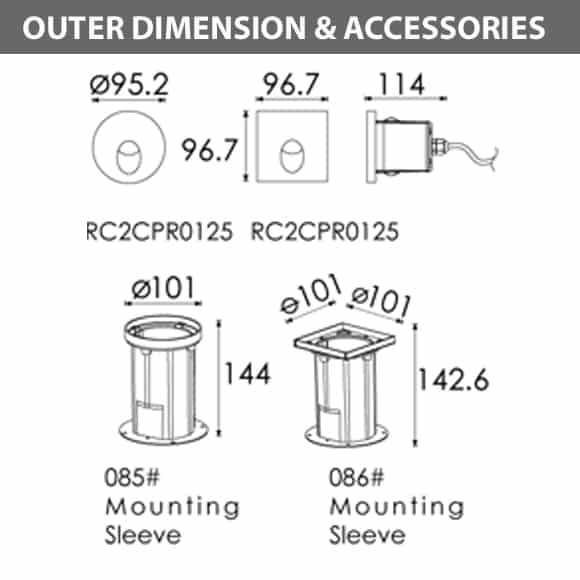

- Mounting sleeve:
- ABS 085#;ABS 086#
- CCT:
- 3000K-5000K
Model# | Light Source | LENS | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|
RC2CPR0125 | 1X5W COB | R24 | 30º | 24V DC | 120V | 240V | 24V=233 | 120V=49 | 240V=31 | 24V=5.6 | 120V=5.8 | 240V=6.4 | Cool White = 375 | Warm White = 355 | 06 |
RC2CPS0125 | 1x5W COB | R24 | 30⁰ | 24V DC | 120V | 240V | 24V=233 | 120V=49 | 240V=31 | 24V=5.6 | 120V=5.8 | 240V=6.4 | Cool White = 375 | Warm White = 355 | 06 |
