LED INGROUND LIGHT

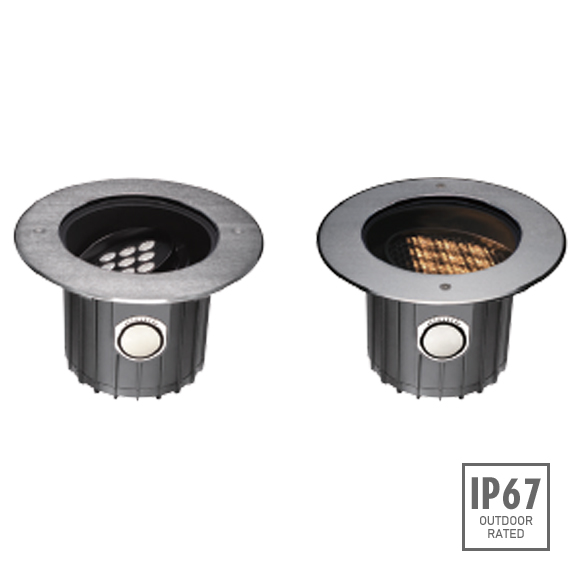

LED Inground Light XB2GFR1257 | XB2GFS1257


Adjustable LED burial lights for high-end projects in Kuwait. 13⁰/25⁰/30⁰ beam option, high-grade aluminium housing, multiple dimming support. Inground lights front cover is made of stainless steel 316 with high-grade aluminium housing. Weatherproof housings provide protection to the lights and avoid it from getting burnt off. Lighting designers & architects can use these versatile LED fixtures for high-end projects in Kuwait to create infinite lighting solutions. These fixtures can add a visual impact and also plays a critical role in safety, apart from lighting.
The application of this light fixture can be to enhance architecture and tree clusters. High grade LED chips like Osram, Nichia & CREE which can promise 50,000hrs of light lifetime can be used. High quality internal and external driver, transformer can add advantage to the life of LED Lights. The inground lights come with complete accessories and fixing mechanism for the ease of installation.

Some of the features are as follows:

Material Specifications XB2GFR1257 | XB2GFS1257


Front cover & Housing:
Hard chrome plated stainless steel SUS 316L# 12# die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B
Glass:
Step tempered glass.T=8mm
Glass pressure capacity:
Full Area=5513kgs
Cable gland:
IP68 PG-9 PA66
Gasket:
Molding shaped seal
LED Driver:
Constant Voltage Input,Constant Current Output
Operating temperature:
-20˚C~40˚C
Power Cable:
H07RN-F 2X1.0mm2 L=0.5m (low voltage) H07RN-F 3X1.0mm2 L=0.5m (high voltage)
Mounting sleeve
ABS Housing with diron base
CCT:
2000K | 3000K | 6000K
Dimmable Support
Triac PWM 1-10V Dali

TECHNICAL DATA

Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
XB2GFR125712X1.5WB2713⁰24V DC | 120/24024V = 1020MA 120V = 151MA 240V = 82MA24V = 24.5 | 120V = 18.2 | 240V = 18.2Cool White=1885 | Warm White=138910
XB2GFS125712X1.5WB2713⁰24V DC | 120/24024V = 1020MA 120V = 151MA 240V = 82MA24V = 24.5 | 120V = 18.2 | 240V = 18.2Cool White=1885 | Warm White=138910

IP68 WATERPROOF CONNECTORS

Adjustable LED burial lights for high-end projects in Kuwait. 13⁰/25⁰/30⁰ beam option, high-grade aluminium housing, multiple dimming support. Inground lights front cover is made of stainless steel 316 with high-grade aluminium housing. Weatherproof housings provide protection to the lights and avoid it from getting burnt off. Lighting designers & architects can use these versatile LED fixtures for high-end projects in Kuwait to create infinite lighting solutions. The fixtures are versatile which can add a visual impact and also plays a critical role in safety, apart from lighting.
The application of this light fixture can be to enhance architecture and tree clusters
. High grade LED chips like Osram, Nichia & CREE which can promise 50,000hrs of light lifetime can be used. High quality internal and external driver, transformer can add advantage to the life of LED Lights. The inground lights come with complete accessories and fixing mechanism for the ease of installation. Available with an option of 13⁰/25⁰/30⁰ beam and multiple dimming support.
