LED INGROUND LIGHT

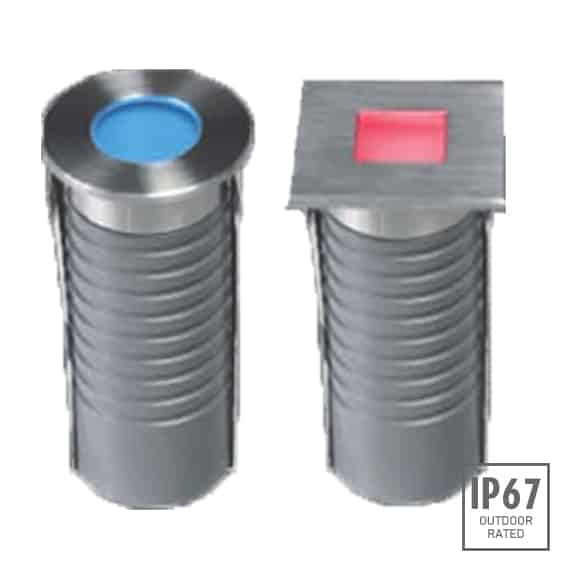

LED Inground Light D2YBR0134 | D2YBS0134


Low power inground light with OSRAM LED & Frosted Diffuser. High-grade stainless steel cover, high pressure capacity & for shrub lighting. These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. The fixtures are versatile which can add a visual impact and also plays a critical role in safety apart from lighting. Applications of low power inground light can be to light up walkways.
They are also used to highlight paths outside buildings or garden areas. These lights can also be used to highlight details on walls or objects or as shrub lighting. These fixtures come with OSRAM LED & frosted diffuser and the front ring is made of high-grade stainless steel to prevent corrosion. The housing is strong and seepage proof which will prevent from water to seep in the fixtures. These up lights provide ground level illumination.

Some of the features are as follows:

Material Specifications D2YBR0134 | D2YBS0134


Front cover & Housing:
Hard chromeplated Stainless steel SUS 316L# 12# Die-casting grey powder coated aluminum. T=60-80μm Adhesion of ISO class 1/ASTM class 4B
Lens:
Optical lens,efficiency≥85%
Light Window:
Tempered glass.T=3mm
LED:
OSRAM
PCB:
Excellent heat conductivity aluminum,coefficient of heat Conductivity≥2.0w/mk
LED Driver:
Constant Voltage Input,Constant Current Output
Operating temperature:
-20ËšC~40ËšC
Power Cable:
H05RN-F 2X1.0mm2 L=2.0m(low voltage) H05RN-F 3X1.0mm2 L=2.0m(high voltage)
CCT:
3000K/6000K

TECHNICAL DATA

Model#Light Source LENSLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
EST-D2YBR01341x0.5W NICHIA--24V DC26MA0.6Cool White=11 | Warm White=9.6003
EST-D2YBS01341x0.5W NICHIA--24V DC26MA0.6Cool White=11 | Warm White=9.6003

IP68 WATERPROOF CONNECTORS

Low power inground light with OSRAM LED & Frosted Diffuser. High-grade stainless steel cover, high pressure capacity & for shrub lighting. These inground LED lighting fixtures will create a beautiful ambiance and enhance the environment. The fixtures are versatile which can add a visual impact and also plays a critical role in safety apart from lighting. Applications of low power inground light can be to light up walkways. They are also used to highlight paths outside buildings or garden areas. These lights can also be used to highlight details on walls or objects or as shrub lighting. These fixtures come with OSRAM LED & frosted diffuser and the front ring is made of high-grade stainless steel to prevent corrosion. The housing is strong and seepage proof which will prevent from water to seep in the fixtures. These up lights provide ground level illumination.
