LED INGROUND LIGHT

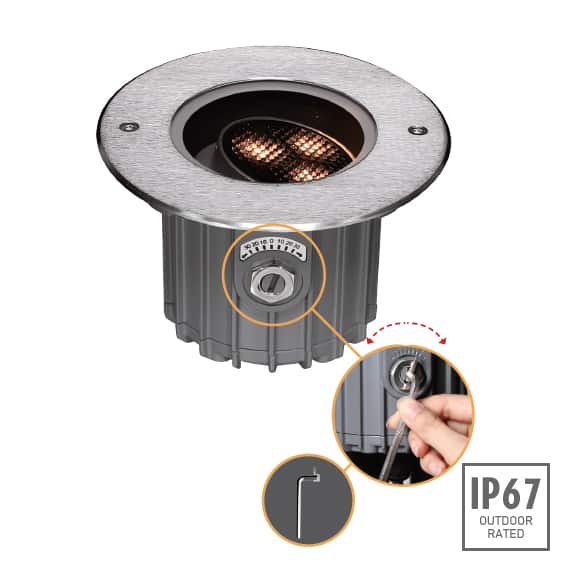

LED Inground Light XB2BG0357 | XB2BG0357 L

Symmetrical Inground lights for lighting projects in Switzerland. NICHIA LED's, pre-adjustable beam direction, PWM dimming & IK10 rating. Inground lights front cover is made of high-grade stainless steel 316. Architects & lighting designers can use these versatile LED outdoor lights in their projects to create infinite lighting solutions. These inground LED lighting fixtures will create a beautiful ambiance and enhance the landscape.
The fixtures are versatile which can add a visual impact and also plays a critical role in safety, apart from lighting.  The application of this light fixture can be to high light walls, columns & pathways. High grade NICHIA LED's can provide 50,000hrs of LED lifetime. High quality internal and external driver, transformer can add advantage to the life of LED Lights. Available with PWM dimming support and pre-adjustable beam for lighting projects in Switzerland. The inground lights come with complete accessories and fixing mechanism for the ease of installation.

Some of the features are as follows:

Material Specifications XB2BG0357 | XB2BG0357 L

Front cover & Housing:

Hard chrome plated stainless steel SUS 316L# 12# die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Light Window:

Step tempered glass.T=8mm

Lens:

Optical lens efficiency≥85%

LED:

OSRAM / NICHIA

Glass pressure capacity:

Full area=783kgs

Cable gland:

IP68 PG-9 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20˚C~40˚C

Power Cable:

H07RN-F 2X1.0mm2 L=0.5m (low voltage) H07RN-F 3X1.0mm2 L=0.5m (high voltage)

Mounting sleeve

ABS 073#

CCT:

2000K | 3000K | 6000K

Dimmable Support

Triac PWM 1-10V Dali
