LED INGROUND LIGHT

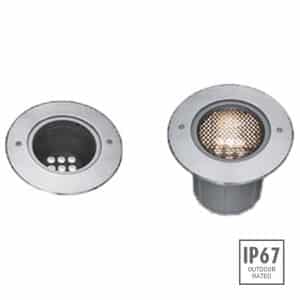

LED Inground Light GB2EFR0956 | GB2EFS0956

Circular LED burial lights with ABS mounting sleeve & CCT Options. High grade LED's, IK10 rating & optional louver with weather proof housing. Buried mounting sleeves and accessories help to form uniform lighting. Inground lights front cover is made of high-grade stainless steel 316 with aluminium body. These lights can be combined with LEDs and lens to create infinite architectural lighting solutions. Weatherproof housings provide protection to the lights and avoid it from getting burnt off.
With the advancement of LED technologies, lighting designers, architects & interior designers can use these versatile LED outdoor lights in their projects to create infinite lighting solutions for outdoor lighting. Circular LED burial lights will create a beautiful ambiance and enhance the landscape. The fixtures are versatile which can add a visual impact and also plays a critical role in safety, apart from lighting.  The application of this light fixture can be to highlight walls, columns, façades & pathways. High grade LED's like Osram, Nichia & CREE which can promise 50,000hrs of light lifetime can be used. High quality internal and external driver, transformer can add advantage to the life of LED Lights.

Some of the features are as follows:

Material Specifications GB2EFR0956 | GB2EFS0956

Front cover & Housing:

Hard chrome plated stainless steel SUS 316L# 12# die-casting grey powder coated aluminum . T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Glass:

Step tempered glass.T=8mm

Reflector:

Optical Reflector efficiency≡90%

LED:

OSRAM 3030

Glass pressure capacity:

Full Area=2500kgs

Cable gland:

IP68 PG-11 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20˚C~40˚C

Power Cable:

H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)

Mounting sleeve

ABS

CCT:

2000K | 3000K | 6000K

Dimmable Support

Triac PWM 1-10V Dali
