LED INGROUND LIGHT

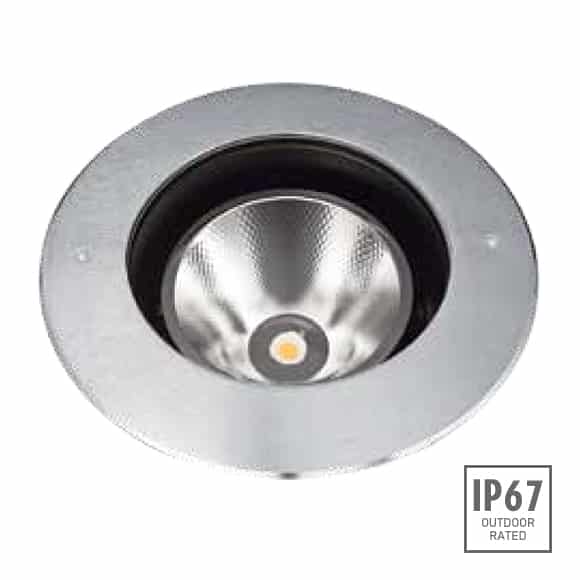

LED In-ground Light R2KFR0176

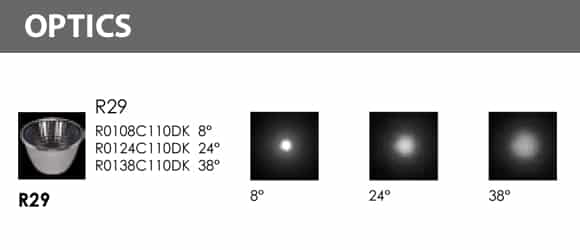

COB Inground Light with stainless steel cover & IK10 rating. High power NICHIA LED, warm white CCT with high lumens for outdoor lighting. These lights are available in beam angles of 8°/24°/38° with IK10 rating. Housing and front cover are made from high grade aluminium and stainless steel to avoid corrosion. These high wattage LED fixtures come with high power NICHIA LED with 50,000hrs of LED lifetime and gives high lumens output. Available in warm white CCT with in-built driver. Highly recommended by architects for landscape lighting projects. COB inground light comes with complete accessories and fixing mechanism for the ease of installation.

Some of the highlights are as follows:

Material Specifications R2KFR0176

Housing:

12# die-casting grey powder coated aluminum .T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Front cover:

Hard chromeplated stainless steel SUS 316L#

Glass:

Step tempered glass.T=10mm

Reflector:

Optical Reflector efficiency≡90%

LED:

NICHIA COB

Glass pressure capacity:

Full area=5016kgs

Cable gland:

-IP68 PG-13.5 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20ºC~40ºC

Power cable:

H07RN-F 2X1.5mm2 L=0.5m(low voltage) H07RN-F 3X1.5mm2 L=0.5m(high voltage)

Mounting sleeve:

ABS 106#

CCT:

3000K-6000K
