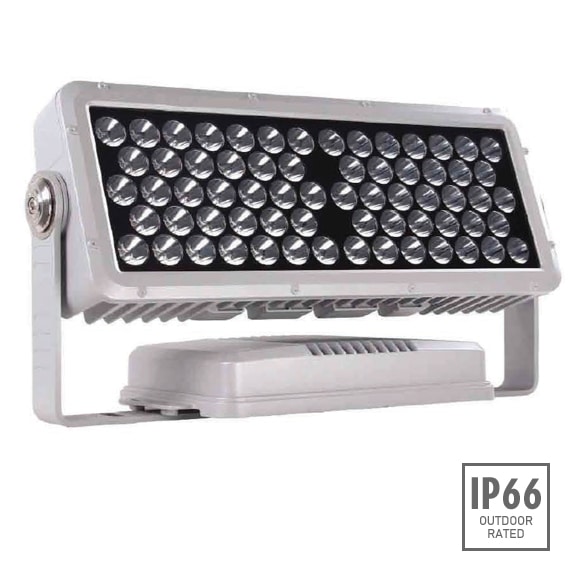

Facade Wall Washer - JRF5-66

High power focus lights with LED lifetime of 70000hrs. IP66 protection, narrow optical design, 48V DC input, adjustable beam angle. Single and RGBW color is also an option.
Facade wall washer lights can be used by lighting designers & architects to create fabulous nighttime aesthetics, facade lighting & highlight columns.

  • Compare us with the best manufacturer before you buy our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications: JRF5-66

    LED Quantity:
    66 pcs
    Frequency Range:
    50/60 Hz
    Control Mode:
    Temperature of Working Condition:
    Humidity of Working Condition:
    LED Lifetime:
    Protection Grade:


    Model#WattageInput VoltageBeam AngleColorLumance
    JRF5-66158W48V DC | AC100-277V4.5⁰Single | RGBW11227 | 6257lm


    outdoor architectural wall washers are perfect for accenting architectural features or adding a touch of drama to any space. And with so many different styles and sizes available, it’s easy to find the perfect fit for your needs. There are many applications for wall washers. This light fixture emits a wide and uniform brightness. The primary goal is to draw attention to the wall – in whatever form or design it may come. RGB facade wall washers can add visual impact to any wall structure or architectural lighting design.

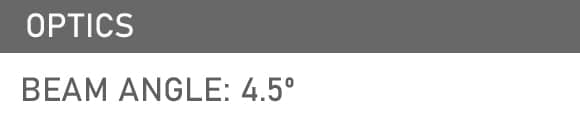

    If you want to highlight unique structures and impress visitors, then use a facade wall washer. The wall grazing technique will create impressive shadows that highlight the shape of a feature on the wall, like an arch or ledge. Positioning of these fixtures is important in getting the desired lighting effect. These arch lighting fixtures are IP66 protected and come with white powder coated aluminium body. Beam angles as narrow as 4.5⁰ can be provided.

    Similar Products : RGB Lights

    outdoor architectural wall washers are a great way to accentuate the specific shape of a structure. They can also enhance the space, color and texture of a building. This lighting technique is commonly used by interior designers and architects.

    With various symmetrical and asymmetrical beam angles available, you can create any look you want. Plus, with the option of 48-252 LEDs, you can really make your mark. And with a lighting distance of up to 200 metres, you’ll be sure to light up even the darkest corners.

    LED facade wall washers in single/RGBW color. 10⁰/25⁰/40⁰/60⁰ beam, ingress protection of IP66 & white powder coated body for architectural lighting design. These fixtures come with an LED lifetime of 70000 hours and are available with CC/DMX512 controls. These arch lighting fixtures are often applicable in stadiums and concerts to light up large areas. These exterior facade lighting fixtures can give beautiful lighting effects with the help of a non dimming or dimming driver and a DMX system. High wattage output ensures equal distribution of light in large areas like stadiums. The body is high grade aluminium with white powder coating. Available in standard color temperature of 3000K/4000K with an option of RGBW.
