OUTDOOR LIGHTING FACADE WALL WASHER

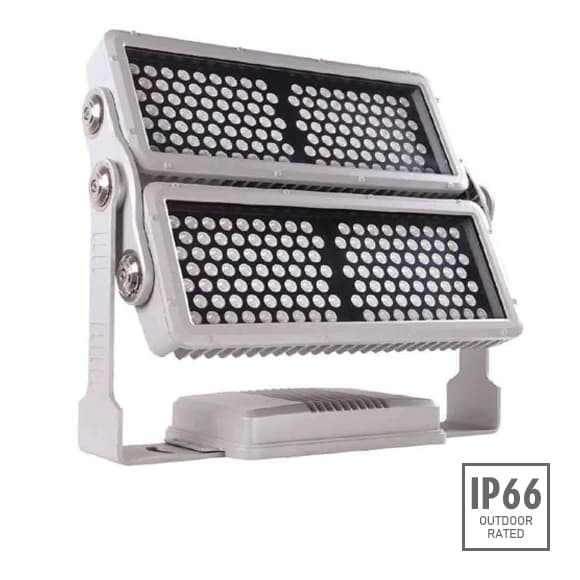

Outdoor LED Facade Wall Washer - JRF5-252 - Image

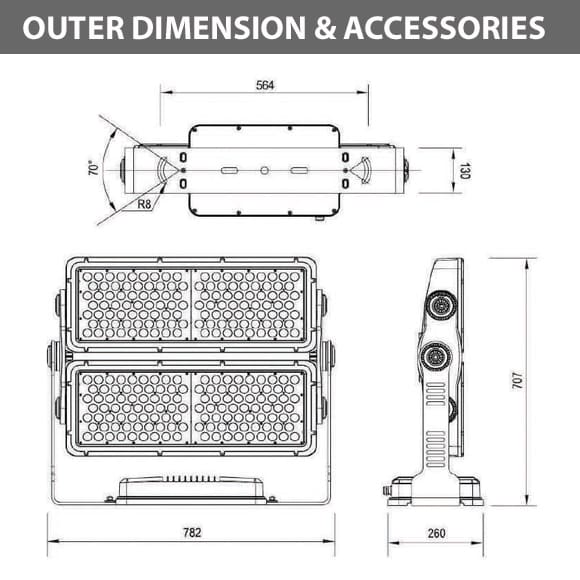

Outdoor LED Facade Wall Washer - JRF5-252 -Diamension

Product Certification

Facade Wall Washer - JRF5-252


Facade LED wall washer with 252 LEDs/fixture. 70000hrs LED lifetime, 50/60 Hz frequency, IP66 protected, 580W power. The beam angle options are 10⁰|25⁰|40⁰ & 60⁰. Single color with RGBW is also an option.
Facade wall washer lights can be used by lighting designers & architects to create fabulous nighttime aesthetics, facade lighting & highlight columns.

  • Compare us with the best manufacturer before you buy our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications: JRF5-252

    LED Quantity:
    252 pcs
    Frequency Range:
    50/60 Hz
    Control Mode:
    CC/DMX512
    Temperature of Working Condition:
    -30⁰~50⁰C
    Humidity of Working Condition:
    10-90%
    LED Lifetime:
    70000h
    Protection Grade:
    IP66

    TECHNICAL DATA

    Model#WattageInput VoltageBeam AngleColorLumance
    JRF5-252580W48V DC | AC100-277V10⁰|25⁰|40⁰|60⁰Single | RGBW38834 | 22190lm
    Outdoor LED Facade Wall Washer -Optics
    Outdoor LED Facade Wall Washer - Color

    IP68 WATERPROOF CONNECTORS

    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    Facade LED wall washer with 252 LEDs/fixture. 70000hrs LED lifetime, 50/60 Hz frequency, IP66 rated, 580W power with beam angle options. The beam angle options are 10⁰|25⁰|40⁰ & 60⁰. Single color with RGBW is also an option. Facade wall washer lights can be used by lighting designers & architects to create fabulous nighttime aesthetics, facade lighting & highlight columns.
