OUTDOOR LIGHTING FACADE WALL WASHER

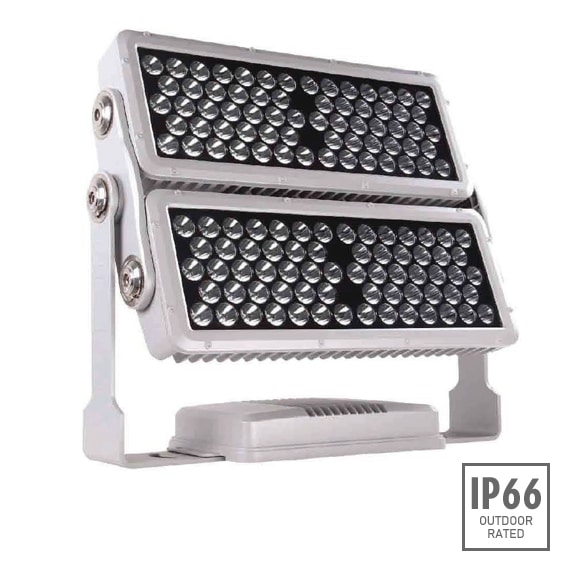

Facade Wall Washer - JRF5-132
High-power facade wall washer with 132 LEDs per fixture & 316W power. Beam angle of 4.5⁰, RoHS compliant, high heat dissipation. Single color with RGBW is also an option. These fixtures come with ingress protection of IP66 and the LED lifetime is 70000hrs.
Facade wall washer lights can be used by lighting designers & architects to create fabulous nighttime aesthetics, facade lighting & highlight columns.
Some of the highlights are as follows:
Material Specifications: JRF5-132
- LED Quantity:
- 132 pcs
- Frequency Range:
- 50/60 Hz
- Control Mode:
- CC/DMX512
- Temperature of Working Condition:
- -30⁰~50⁰C
- Humidity of Working Condition:
- 10-90%
- LED Lifetime:
- 70000h
- Protection Grade:
- IP66
TECHNICAL DATA
Model# | Wattage | Input Voltage | Beam Angle | Color | Lumance |
---|---|---|---|---|---|
JRF5-132 | 316W | 48V DC | AC100-277V | 4.5⁰ | Single | RGBW | 22160 | 12311lm |
IP68 WATERPROOF CONNECTORS
High-power facade wall washer with 132 LEDs per fixture & 316W power. Beam angle of 4.5⁰, RoHS compliant, high heat dissipation. Single color with RGBW is also an option. These fixtures come with ingress protection of IP66 and the LED lifetime is 70000hrs. Facade wall washer lights can be used by lighting designers & architects to create fabulous nighttime aesthetics, facade lighting & highlight columns. These fixtures have a narrow beam angle of 4.5⁰ and can be controlled using a CC/DMX512 driver. High grade facade wall washers with white powder coated housing, 132Pcs LED & IP66 rating for high end facade lighting.
