IN-GROUND WALL WASHER

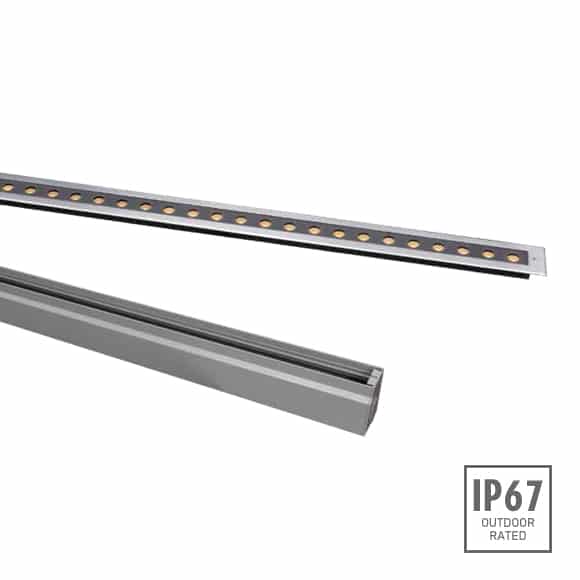

In-ground Wall Washer - S2RLB1257 | S2RLB2457
Some of the highlights are as follows:
Material Specifications: S2RLB1257 | S2RLB2457
- Front cover & Housing:
- 12# Die-casting dark grey powder coated aluminum.T=60-80μm. Hard chromeplated stainless steel SUS 316L#
- Light Window:
- Step tempered glass.T=8mm
- Cable Gland :
- IP68 PG-9 PA66
- Glass pressure capacity:
- Full area=3251kgs
- Gasket:
- Molding shaped silicone seal
- PCB:
- Excellent heat conduvtivity aluminum, coefficient of heat Conductivity≥2.0w/mk
- LED Driver:
- Constant Voltage Input,Constant Current Output
- Operating Temperature :
- -20⁰C~40⁰C
- Power Cable :
- H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
Model# | Light Source | Lens | Length | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
S2RLB1257 | 12x1.5W | B45 | 549 | 10⁰x35⁰ | 24V DC | 120V | 240V | 24V=910 | 120V=143 | 240V=79 | 24V=22 | 120V=17 | 240V=17.5 | Cool White=1759 | Warm White=1431 | 07 |
S2RLB2457 | 24x1.5W | B45 | 1025 | 10⁰x35⁰ | 24V DC | 120V | 240V | 24V=1826 | 120V=312 | 240V=156 | 24V=44 | 120V=36 | 240V=36.4 | Cool White=3662 | Warm White=3013 | 07 |





Recessed linear LED lighting for lighting facades of skyscrapers, historic monuments, government building, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Recessed linear LED lighting are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and enhance the architecture.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
The most popular reason to use an outdoor Recessed linear LED lighting is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are available in RGB/RGBW/mono color and are often used to light up historic monument, government building and railway station.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures are designed to evenly illuminate large vertical surfaces, adding a touch of drama and helping to highlight the architecture of your home.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Recessed linear LED lighting are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
