OUTDOOR LIGHTS - WALL WASHER

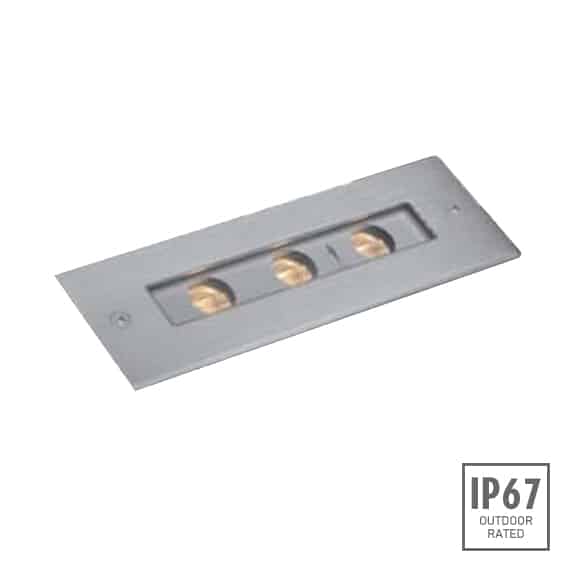

Wall Washer - C2FL0357
Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 8mm tempered frosted step glass. 45*35 degree asymmetric lens with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
Some of the highlights are as follows:
Material Specifications: C2FL0357
- Front cover & Housing:
- 12# Die-cating dark grey powder coated aluminium. T=60-80μm, Hard chrome-plated stainless steel SUS316L#
- Light Window:
- Tempered Frosted Step glass. T=8mm
- Glass Pressure Capacity:
- Full area=3251Kg
- Gasket:
- Molding Shaped silicon seal
- PCB:
- Excellent heat conductivity aluminium, coefficient of heat conductivity≥2.0/mk
- LED Driver:
- Constant Voltage Input, Constant current output
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m H05RN-F 3X1.0mm2 L=0.5m
- Operating Temperature :
- -20⁰C~40⁰C
- CCT:
- 2000K/3000K/6000K

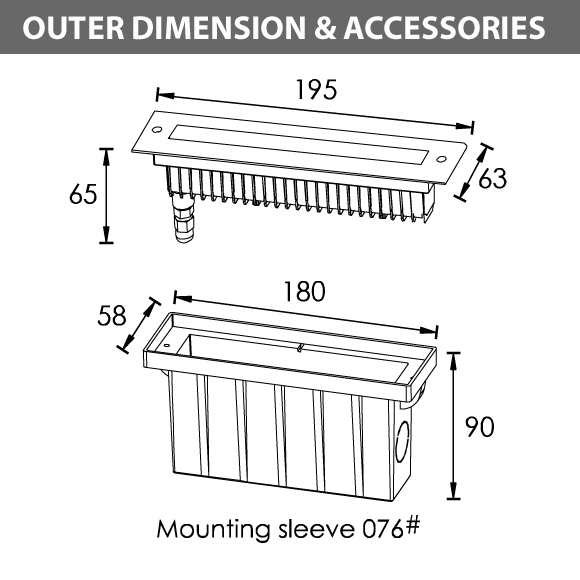

- Mounting Sleeve:
- ABS 076#
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | Lens | Weight | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
C2FL0357 | 3x2W | C11 | 0.9 | 45⁰x35⁰ | 24V DC | 120/240 | 24V=240 | 120=89 | 240=46 | 24V=5.7 | 120V=6 | 240V=5.7 | Cool White=340 | Warm White=285 | 08 |


IP68 WATERPROOF CONNECTORS




Outdoor Wall Washer America
High grade outdoor Wall Washer for architectural lighting projects in America. Used by architects and lighting designers for landscape lighting in USA. Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 6mm tempered frosted step glass. 45*35 degree asymmetric lens with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
