OUTDOOR LIGHTS - WALL WASHER

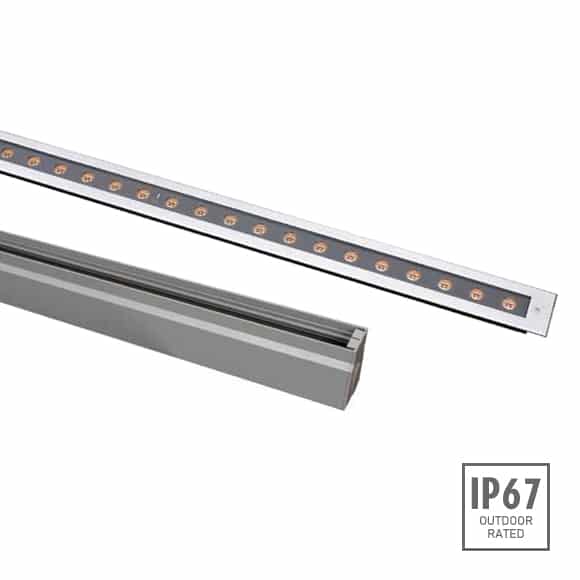

Wall Washer - C2RLB1257 | C2RLB2457
Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 6mm tempered frosted step glass. 45*35 degree asymmetric lens with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
Some of the highlights are as follows:
Material Specifications: C2RLB1257 | C2RLB2457
- Front cover & Housing:
- Extruded Aluminium, powder coated. Hard Chrome-plated stainless steel SUS316L
- Light Window:
- Tempered Frosted Step glass. T=6mm
- Lens:
- Optical lens, efficiency≥85%
- LED:
- OSRAM
- Gasket:
- Glass and housing are silicon sealed
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m H05RN-F 3X1.0mm2 L=0.5m
- Operating Temperature :
- -20⁰C~40⁰C
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
Model# | Light Source | Lens | Length | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
C2RLB1257 | 12x1.5W | C8 | 549 | 45⁰x35⁰ | 24V DC | 120/240 | 24V=910 | 120=143 | 240=79 | 24V=22 | 120V=17 | 240V=17.5 | Cool White=1108 | Warm White=1020 | 07 |
C2RLB2457 | 24x1.5W | C8 | 1025 | 45⁰x35⁰ | 24V DC | 120/240 | 24V=1823 | 120V=312 | 240V=146 | 24V=44 | 120V=36 | 240V=33.6 | Cool White=2472 | Warm White=2114 | 07 |
IP68 WATERPROOF CONNECTORS
Outdoor Wall Washer for Garden path lights. Recommended by architects and lighting consultants for high end projects. Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 6mm tempered frosted step glass. The lens angle is 120 degree and the light comes with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
The most popular reason to use an outdoor LED wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. Garden path lights fixtures are available in RGB/RGBW/mono color and are often used to light up historic monument, government building and railway station.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures are designed to evenly illuminate large vertical surfaces, adding a touch of drama and helping to highlight the architecture of your home.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Garden path lights are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. These lights are also available in RGB and RGBW, and can be provided along with DMX controls to create infinite lighting effects. Lighting designers and architects can use these high quality LED fixtures in their lighting designs, landscape & prestigious projects.
