OUTDOOR LIGHTS - WALL WASHER
Wall Washer - B2FL0657
Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 8mm tempered frosted step glass. The lens options are 8⁰, 13⁰, 25⁰, 30⁰ for varied lighting effects. The light comes with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
Some of the highlights are as follows:
Material Specifications B2FL0657
- Front cover & Housing:
- 12# Die-cating dark grey powder coated aluminium. T=60-80μm, Hard chrome-plated stainless steel SUS316L#
- Light Window:
- Tempered Frosted Step glass. T=8mm
- LED:
- OSRAM or NICHIA
- Glass Pressure Capacity:
- Full area=3251Kg
- Gasket:
- Molding Shaped silicon seal
- PCB:
- Excellent heat conductivity aluminium, coefficient of heat conductivity≥2.0/mk
- LED Driver:
- Constant Voltage Input, Constant current output
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m H05RN-F 3X1.0mm2 L=0.5m
- Operating Temperature :
- -20⁰C~40⁰C
- CCT:
- 2000K/3000K/6000K

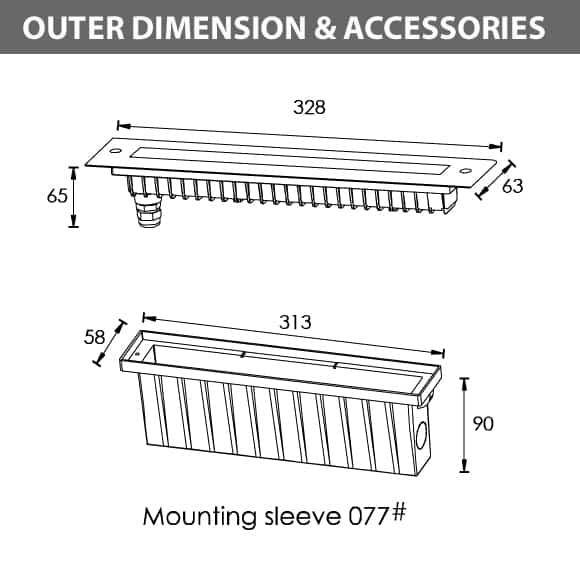

- Mounting Sleeve:
- ABS 077#
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Lens | Weight | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| B2FL0657 | 6x2W | B27 | 1.6 | 25⁰ | 24V DC | 120/240 | 24V=550 | 120=100 | 240=57 | 24V=13.2 | 120V=11.8 | 240V=12.1 | Cool White=1100 | Warm White=733 | 08 |
IP68 WATERPROOF CONNECTORS
Outdoor ground lights for prestigious architectural lighting projects in Spain. Most trusted and recommended by lighting designers in Spain. Premium quality Wall washer inground lights at competitive price, with a range of optics and sizes to select. New range of wall washer has color option of RGBW with DMX controls. High quality wall washer with chrome plated stainless steel housing, 8mm tempered frosted step glass. The lens options are 8⁰, 13⁰, 25⁰, 30⁰ for varied lighting effects. The light comes with Ingress protection of IP67. CCT options are 2000K | 3000K | 6000k with Triac, PWM, 1-10V & Dali dimming possible.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other outdoor lighting applications. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
Outdoor linear wall washers for lighting facades of skyscrapers, historic monuments, government building, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Outdoor ground lights are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and enhance the architecture.
The most popular reason to use an Outdoor ground lights wall washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are available in RGB/RGBW/mono color and are often used to light up historic monument, government building and railway station.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. Outdoor ground lights fixtures are designed to evenly illuminate large vertical surfaces, adding a touch of drama and helping to highlight the architecture of your home.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. Outdoor ground lights of 10*30 and 15*32 can be provided as well.
Spacing between the wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Outdoor ground lights Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
