OUTDOOR IN-GROUND LIGHT

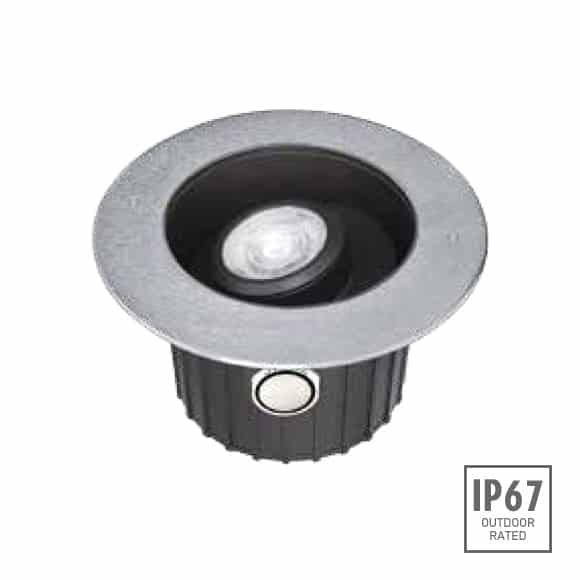

LED In-ground Light - XB2KFR0173

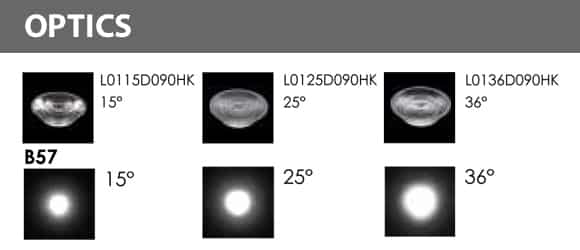

25W CoB inground light with 3000K/ 5000K color temperature & CREE LED. IP67 outdoor rated, B57 15°/25°/36° beam with ABS sleeve. These lights come in sanded dark grey housing & the front cover is made of stainless steel SUS 316L#.

Compare us with the best manufacturer before buying our outdoor LED lighting products

A free installation guide is provided with each product

Check out the fascinating designs, quality, and prices

Click each of the boxes below and download individual products of your choice

Some of the highlights are as follows:

Material Specifications: XB2KFR0173

Housing:

12# die-casting grey powder coated aluminum .T=60-80μm. Adhesion of ISO class 1/ASTM class 4B

Front cover:

Hard chromeplated stainless steel SUS 316L#

Glass:

Step tempered glass.T=10mm

Reflector:

Optical Reflector efficiency≡90%

LED:

CREE COB

Glass pressure capacity:

Full area=5356kgs

Cable gland:

-IP68 PG-13.5 PA66

Gasket:

Molding shaped seal

LED Driver:

Constant Voltage Input,Constant Current Output

Operating temperature:

-20ºC~40ºC

Power cable:

H07RN-F 2X1.5mm²L= 0.5m（low voltage) H07RN-F 3X1.5mm²L= 0.5m（high voltage)

Mounting sleeve:

ABS 106#

CCT:

3000K - 5000K

TECHNICAL DATA

Model#	Light Source	LENS	Lens Degree	Input Voltage	Operating Current(MA)	Consumption (W)	Lumance (LM)	IK
XB2KFR0173	1×25W COB	B57	25°	24V DC \| 120V \| 240V	24V DC = 1040 \| 120V = 240 \| 240V = 130	24V DC = 25 \| 120V = 28 \| 240V = 28	Cool White=2700 \| Warm White=2471	10
