OUTDOOR LED FOCUS LIGHTS

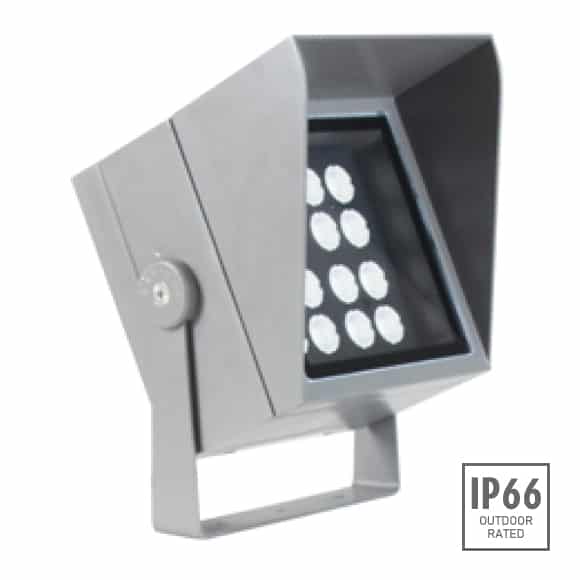

High Power Outdoor LED Focus Light - JRF4-M-H
Adjustable LED projector light with 16 LEDs/fixture, IP66 & IK08 rating. 38W-85W power, single and RGB color, multiple beam angles. Competitive price, high-quality products with wide range & extensive product depth.
Outdoor LED Focus light is one of the majorly used types of Outdoor lighting fixtures & can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, security, sport, private gardens, public landscapes, building facade, stage lighting.
Some of the highlights are as follows:
Material Specifications: JRF4-M-H
- LED Quantity:
- 16 pcs
- Frequency Range:
- 50/60 Hz
- Control Mode:
- ON/OFF/DMX512
- CRI:
- >80
- Temperature of Working Condition:
- -35⁰~50⁰C
- Humidity of Working Condition:
- 10-90%
- LED Lifetime:
- 70000h
- Protection Grade & IK:
- IP66 & IK08
TECHNICAL DATA
| Model# | Wattage | Input Voltage | Beam Angle | Color | Lumance |
|---|---|---|---|---|---|
| JRF4-M-30H | 27W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | 4000K | 2128lm |
| JRF4-M-20H | 18W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | 4000K | 1520lm |
| JRF4-M-40H-C | 40W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | RGBW | 1530lm |
| JRF4-M-30-H-C | 30W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | RGBW | 1247lm |
| JRF4-M-20H-C | 20W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | RGBW | 902lm |
| JRF4-M-60H | 56W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | 4000K | 3700lm |
| JRF4-M-40H | 38W | 24V DC | AC100-277V | 10⁰|15⁰|25⁰|30⁰|50⁰|10⁰x35⁰ | 4000K | 2686lm |
IP68 WATERPROOF CONNECTORS
Adjustable LED projector light with 16 LEDs/fixture, IP66 & IK08 rating. 18W-56W power, single and RGB color, multiple beam angles. Competitive price, high-quality products with wide range & extensive product depth. Outdoor LED Focus light is one of the majorly used types of Outdoor lighting fixtures & can be used by Lighting Designers & Architects to create fabulous nighttime aesthetics, security, sport, private gardens, public landscapes, building facade, stage lighting. Multiple beam angles with an option of asymmetric beam is available for various lighting requirements. Wattages offered for these adjustable LED projector light are 18W-56W with single & RGB colors. Lumens output can go as high as 3700lm/m. These fixtures are IP66 & IK08 rated. 16 LEDs/fixture with LED lifetime of 70,000 burning hours.
Similar products for outdoor lighting projects: https://www.est.net.in/outdoor-led-lighting/high-power-outdoor-led-focus-lights/led-projector-lights-jrf3-72/
