IN-GROUND WALL WASHER
In-ground Wall Washer - S2FL0657
LED linear inground light with IP67 ingress protection. Extruded aluminum housing, 6MM tempered glass, 6x2W OSRAM LED & dimming options. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc.
Some of the highlights are as follows:
Material Specifications: S2FL0657
- Front cover & Housing:
- Hard chromeplated stainess steel SUS 316L. Extruded aluminum, powder coated
- Light Window:
- Tempered glass.T=6mm
- Optical lens.efficiency≥85%
- Glass and housing are silicone sealed
- Cable Gland:
- IP68 PG-9 PA66
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(High voltage)
- Operating Temperature :

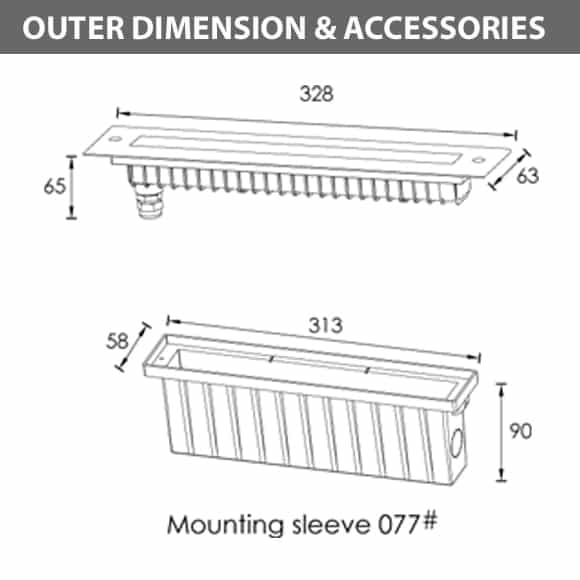

- Mounting Sleeve :
- -Powder Coated Aluminum 137# 138#
- Dimmable Support:
- Triac PWM 1-10V Dali
|Model#||Light Source||Lens||Length||Lens Degree||Input Voltage||Operating Current(MA)||Consumption (W)||Lumance (LM)||IK|
|S2FL0657||6x2W||B27||328||8°x30°||24V DC | 120V | 240V||24V=520 | 120V=100 | 240V=57||24V=12.5 | 120V=11.8 | 240V=12.1||Cool White=954 | Warm White=791||08|
LED Inground Wall Washer
LED In-ground Light
LED Focus Light
LED In-ground COB Light
LED Facade Wall Washer
LED Bollard Light
LED Flood Light
LED Fountain Light
Outdoor LED Focus Light
LED Swimming Pool Light
High Power LED Focus Light
LED Underwater Spot Light
LED Wall Washer Light
LED Inground Deck Lights
Drive Over Lights
Linear LED Wall Washers
LED Wall Lights
Wall Mounted Lights
Outside ground lights light with IP67 ingress protection. Extruded aluminum housing, 6MM tempered glass, 6x2W OSRAM LED & dimming options. One can create wonders with the right distribution of light. Applications for wall washer can be in resorts, hotel lighting, park lighting, façade lighting, etc. These fixtures are available in single color temperatures of 2000K/3000K/6000K to suit various lighting needs. These fixtures also comes with Triac/PWM/1-10V/Dali dimming support.
Outside ground lights wall washers for lighting facades of skyscrapers, historic monuments, government building, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and enhance the architecture.
The most popular reason to use an Outside ground lights is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are available in RGB/RGBW/mono color and are often used to light up historic monument, government building and railway station.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures are designed to evenly illuminate large vertical surfaces, adding a touch of drama and helping to highlight the architecture of your home.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
Outside ground lights also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
Lighting designers & architects use these wall washers to create fabulous night time aesthetics, Illuminate walls, columns, façades, many other IP67 outdoor pathway lights. One can create wonders with the right distribution of light. Applications for IP67 outdoor pathway lights can be in resorts, hotel lighting, park lighting, façade lighting, etc.
