OUTDOOR LED FOCUS LIGHTS

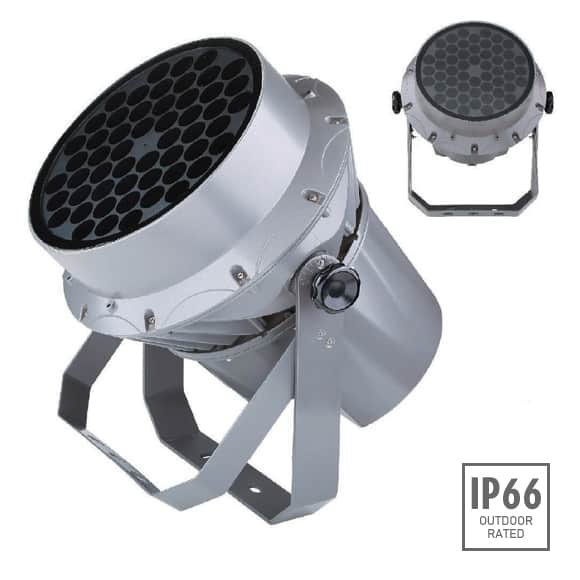

High-Power Outdoor LED Focus Light - JRF3 - 54D
High-grade projector lights for facade & landscape lighting. 48V DC, beam angle of 6⁰|15⁰x70⁰, powder coated housing & shock resistant. These lights come in various wattages & has an LED lifetime of 70000 hours. These lights have an ingress protection of IP66.
Outdoor LED focus light is one of the majorly used types of outdoor lighting fixtures used by lighting designers & architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting.
Some of the highlights are as follows:
Material Specifications: JRF3-54D
- LED Quantity:
- 54 pcs
- Frequency Range:
- 50/60 Hz
- Control Mode:
- CC/DMX512
- Installation Pipe Diameter:

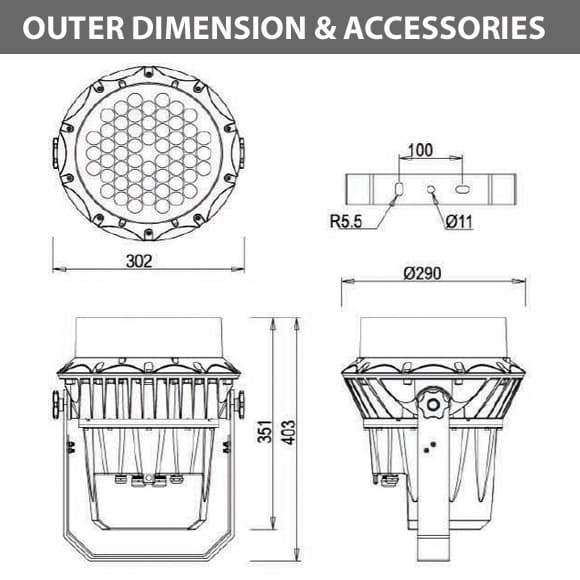

- Ø11x100mm
- Temperature of Working Condition:
- -30⁰~50⁰C
- Humidity of Working Condition:
- 10-90%
- LED Lifetime:
- 70000h
- Protection Grade:
- IP66
TECHNICAL DATA
| Model# | Wattage | Input Voltage | Beam Angle | Color | Lumance |
|---|---|---|---|---|---|
| JRF3-54D | 85W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | Single | 5753lm |
| JRF3-54D | 128W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | RGBW | 3287lm |
| JRF3-54D*2.2W | 129W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | Single | 6528lm |
