OUTDOOR LED FOCUS LIGHTS

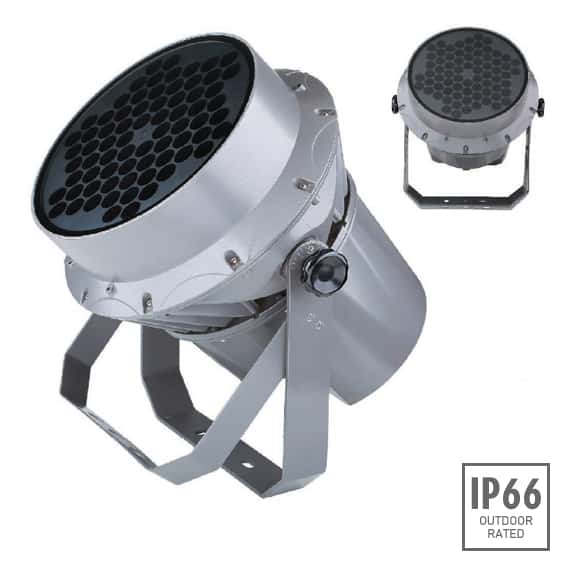

High-Power Outdoor LED Focus Light - JRF3 - 72D
Outdoor LED projector lights with wide range & high lumens output. Toughen glass cover, die cast aluminium body & 6⁰|15⁰x70⁰ beam angle. These lights come in various wattages & has an LED lifetime of 70000 hours. These lights have an ingress protection of IP66.
Outdoor LED focus light is one of the majorly used types of outdoor lighting fixtures used by lighting designers & architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting
Some of the highlights are as follows:
Material Specifications: JRF3-72D
- LED Quantity:
- 72 pcs
- Frequency Range:
- 50/60 Hz
- Control Mode:
- CC/DMX512
- Installation Pipe Diameter:
- Ø11x100mm
- Temperature of Working Condition:
- -30⁰~50⁰C
- Humidity of Working Condition:
- 10-90%
- LED Lifetime:
- 70000h
- Protection Grade:
- IP66
TECHNICAL DATA
| Model# | Wattage | Input Voltage | Beam Angle | Color | Lumance |
|---|---|---|---|---|---|
| JRF3-72D | 113W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | Single | 7710lm |
| JRF3-72D | 163W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | RGBW | 4405lm |
| JRF3-72D*2.2W | 171W | 48V DC | AC100-277V | 6⁰|15⁰x70⁰ | Single | 8581lm |
IP68 WATERPROOF CONNECTORS
Outdoor LED projector lights with wide range & high lumens output. Toughen glass cover, die cast aluminium body & 6⁰|15⁰x70⁰ beam angle. These lights come in various wattages & has an LED lifetime of 70000 hours. These lights have an ingress protection of IP66.
Outdoor LED focus light is one of the majorly used types of outdoor lighting fixtures used by lighting designers & architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting.
