OUTDOOR LED FOCUS LIGHTS
High-Power Outdoor LED Focus Light - JRF3-18R
Outdoor projector lights in die-cast aluminium powder coated grey color. These fixtures come with 18 LEDs per fixture & a narrow beam of 4.5 degrees. 46.2W power with composite bracket and IP66 rating. LED lifetime for these fixtures are 70,000 burning hours. High grade die-cast aluminium with toughened glass makes this fixture anti-impact & abrasion resistant. These fixtures are compatible with non dimming driver & DMX controller. Lumens output of 1703lm & 3066lm is achievable depending on the color temperature.
Outdoor LED focus light is one of the majorly used types of outdoor lighting fixtures used by lighting designers & architects to create fabulous nighttime aesthetics, accessibility, security, recreation, sport, and other special social events for private gardens, public landscapes and LED outdoor lighting. DMX controlled RGB focus lights are often used to light up bridges, stadiums, parks & buildings.
Some of the highlights are as follows:
Material Specifications: JRF3-18R
- LED Quantity:
- 18 pcs
- Frequency Range:
- 50/60 Hz
- Control Mode:
- CC/DMX512
- Installation Pipe Diameter:

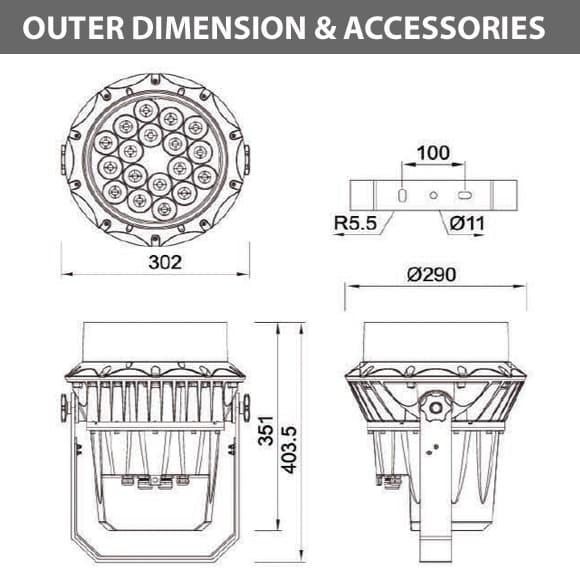

- Ø11x100mm
- Temperature of Working Condition:
- -30⁰~50⁰C
- Humidity of Working Condition:
- 10-90%
- LED Lifetime:
- 70000h
- Protection Grade:
- IP66
TECHNICAL DATA
| Model# | Wattage | Input Voltage | Beam Angle | Color | Lumance |
|---|---|---|---|---|---|
| JRF3-18R | 46.2W | 48V DC | AC100-277V | 4.5⁰ | Single | 3066lm |
| JRF3-18R | 46.2W | 48V DC | AC100-277V | 4.5⁰ | RGB | 1703lm |
IP68 WATERPROOF CONNECTORS
Color changing flood lights are strong, durable and can withstand extreme temperatures. They have LED lifetime of 70,000 hours and come with IP66 ingress protection. These are white powder coated fixtures which are available in narrow to wide beam angles of 10⁰|25⁰|35⁰|60⁰. Wattages for these fixtures range from 55W to a maximum of 290W depending on the color temperature. Standard CCT of 3000K/4000K/5000K and 6000K is available with an option of RGBW. 50W LED floodlight is applicable for illuminating small areas which require moderate lighting.
These versatile sports floodlighting fixtures can be adjusted to create the desired distribution angle and brightness, making them ideal for a variety of settings. Plus, with multiple flood lights, you can achieve an even more dramatic lighting effect. These fixtures are applicable as security lights and park flood lights.
With the help of dimming drivers and DMX master controllers, you can create different effects by adjusting the color and blinking mode. This is perfect for setting the mood at parties or other events. Plus, LED flood lights are also very energy-efficient, so you’ll save money in the long run. Other applications of these fixtures can be for garden flood lights.
Similar Products : RGB Lights
Compared to traditional incandescent or halogen bulbs, LED flood lights can last much longer and use far less power. They’re also more versatile in terms of color and light output. Whether you need a bright white light for security purposes or a colorful light display for a special event, LED flood lights are up to the task. And because they use less power, they’ll save you money in the long run.
Color changing flood lights for architectural facade lighting with ON/OFF/DMX512 Controller. For use in buildings, ports & construction sites. Outdoor LED flood lights can be used by lighting designers & architects for façade lighting, buildings, ports & construction sites. Major applications for these fixtures can be in landscape lighting, stage lighting & to illuminate playing fields at night.
These are high valued items for lighting designers & architects. These architectural outdoor lights not just add beauty and elegance to building facades and landscape but are also a critical element of a city landscape. High grade components with high powered LEDs and drivers for high durability. ON/OFF or DMX master controllers, symmetrical lens & IP66 rating for use in stadiums and stage lighting.
