LED Deck Lights
LED Deck Lights FB2XBR0357 | FB2XBS0357

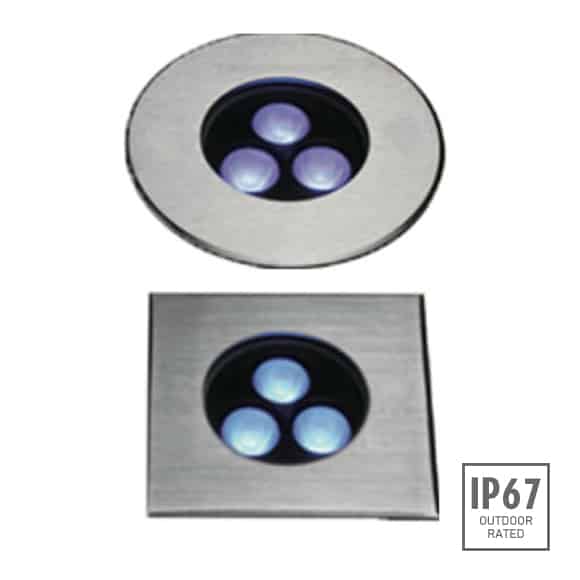

LED deck lights for landscape deck lights, step lighting, recessed pool deck lights and stair wall lights with 24V and 240V input. These are recessed slim deck lights with chrome plated SS ring, 3x2W LED, built-in driver option and 20⁰ beam for step lighting or pool deck. These lights come with ingress protection of IP67 and powder coated alumimium housing. These fixtures can be used for deck lighting, wooden floor lighting, nighttime aesthetics & security purposes.
These lights makes the outdoor living space look more attractive & also improves visibility. It can also be used to highlight a landscape feature or a pool deck. Recessed slim deck lights give soft, subtle light that adds aesthetic beauty and provides security. High quality power cable & IP68 connectors for easy installation. Outdoor stair lighting fixtures are a great way to add style and safety to your outdoor space. LED deck lights exterior step lights can provide a subtle, diffused light that will create a warm and inviting atmosphere.
Some of the highlights are as follows:
Material Specifications FB2XBR0357 | FB2XBS0357
- Front cover & Housing:
- 12# Die-casting dark grey powder coated alumimium T=60-80μm. Adhesion of ISO class 1/ASTM class 4B, Hard Crome plated stainless Steel SUS 316#
- Light Window:
- Tempered Frosted Step glass. T=8mm
- LED:
- OSRAM
- Glass Pressure Capacity:
- Full Area = 3370Kg
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.5m H05RN-F 3X1.0mm2 L=0.5m
- Operating Temperature :
- -20⁰C~40⁰C
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Lens | Lens Degree | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|
| FB2XBR0357 | 3x2W | FB03 | 20⁰ | 24V DC | 120/240 | 24V=220 | 120=47 | 240=25 | 24V=5.3 | 120V=5.6 | 240V=5.7 | Cool White=452 | Warm White=388 | 08 |
| FB2XBS0357 | 3x2W | FB03 | 20⁰ | 24V DC | 120/240 | 24V=220 | 120=47 | 240=25 | 24V=5.3 | 120V=5.6 | 240V=5.7 | Cool White=452 | Warm White=388 | 08 |
IP68 WATERPROOF CONNECTORS
LED deck lights
LED deck lights for landscape deck lights, step lighting, recessed pool deck lights and stair wall lights with 24V and 240V input. These lights come with ingress protection of IP67, powder coated alumimium housing & chrome plated SS ring. Fixtures can be used for deck lighting, wooden floor lighting, nighttime aesthetics & security purposes.
These under lights make the outdoor living space look more attractive & also improves visibility. It can also be used to highlight a landscape feature or a pool deck. Recessed slim deck lights give soft, subtle light that adds aesthetic beauty and provides security. 3x2W LED, built-in driver option with 20⁰ beam & high quality power cable, IP68 connectors for easy installation.
LED deck lights can highlight different features of your deck, and they can also create a warm and inviting atmosphere at night. There are many different types of decking lights available, so it’s important to choose the right ones for your space.
LED deck lights exterior step lights can provide a subtle, diffused light that will create a warm and inviting atmosphere. These are available in both circular and square front plates to suit your particular area. Also, they can be easily installed in both new and existing decks. So if you’re looking for a way to take your deck to the next level.
Outdoor stair lighting fixtures are a great way to add style and safety to your outdoor space. Whether you’re looking for overhead pendant lighting or in-floor lights, there are plenty of options to choose from. Stair lights are a great way to light up stairs and walkways. They can also help accentuate your perimeter. With so many different styles and types of lights available, it’s easy to find the perfect option for your space.
Dedicated manufacturers of landscape deck lights for architectural outdoor lighting and step lighting. Recessed pool deck lights with single/RGB/RGBW CCT, TRIAC & DALI dimming support with 13+ designs for outdoor landscape lighting. IP67 protection for outdoor architectural & landscape lighting. These stair wall lights can light up garden decks or pool decks with TRIAC & DALI dimming drivers to create fabulous lighting effects. Small size allows the fixtures to fit into narrow deck spaces.
Similar wooden deck lights for commercial projects.
