LED RECESSED WOODEN FLOOR LIGHT

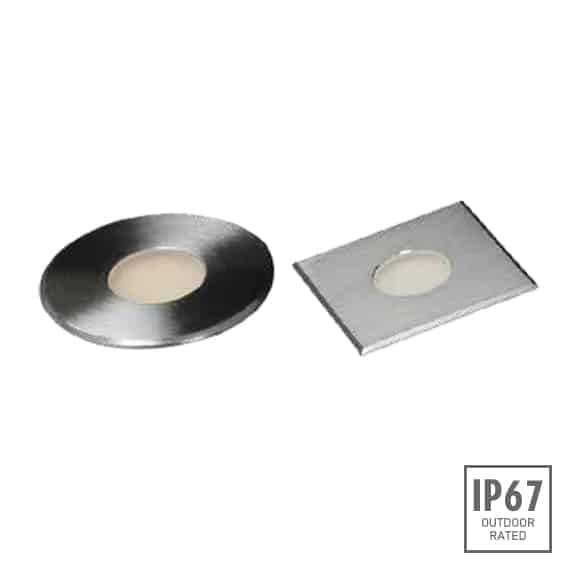

Recessed Wooden Floor Light - D2XAR0641 - D2XAS0641 Image

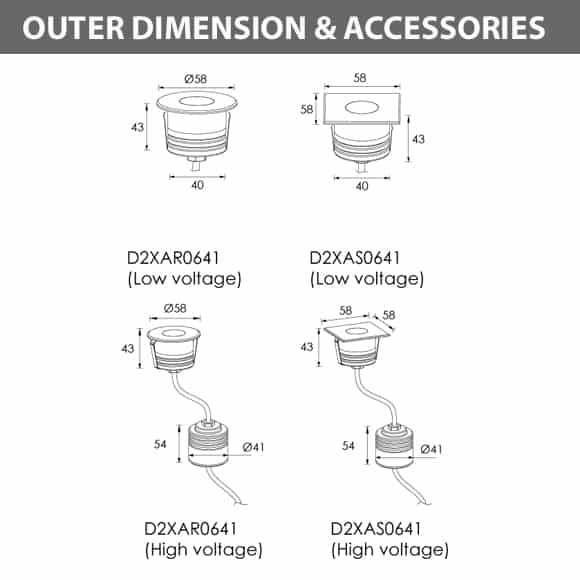

Recessed Wooden Floor Light - D2XAR0641 - D2XAS0641 Dia

Product Certification

LED Recessed Wooden Up-Light D2XAR0641 | D2XAS0641

LED wooden up light for pool deck lighting. Recessed fixtures with low wattage LED, PWM dimming, diffused light output & SS finish. Applications of these lights can be in wooden decks, outdoor dining area & steps. These lights can also be used for SPA decks & swimming pool decks. The fixtures are versatile which can add a visual impact and also plays a critical role in safety apart from lighting.
Use of stainless steel front cover and powder coated aluminium housing ensures that the fixture is corrosion resistant. These LED Outdoor lights also change the ambience of the area and sets a colorful and happy mood. LED wooden up light with low wattage LED & PWM dimming. Recessed fixtures for pool deck lighting applications.
Some of the features are as follows:

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications: D2XAR0641 | D2XAS0641


    Front cover & Housing:
    Hard chromeplated stainless steel SUS 316#. 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Tempered frosted step glass.T=7mm
    Glass Pressure Capacity:
    Full area=1106kgs
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Operating Temperature :
    -20⁰C~40⁰C
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali
    TECHNICAL DATA
    Model#Light Source LensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D2XAR06416×0.06W-- 24V DC | 240V24V=17 | 240V=1324V=0.4 | 240V=0.7Cool White=2 | Warm White=110
    D2XAS06416×0.06W-- 24V DC | 240V24V=17 | 240V=1324V=0.4 | 240V=0.7Cool White=2 | Warm White=110
    IP68 WATERPROOF CONNECTORS
    Socket
    Plug
    Application
    Outer dia
    PRODUCT CATALOG
    SIMILAR PRODUCTS

    LED wooden up light for pool deck lighting. Recessed fixtures with low wattage LED, PWM dimming, diffused light output & SS finish. Applications of these lights can be in wooden decks, outdoor dining area & steps. These lights can also be used for SPA decks & swimming pool decks. The fixtures are versatile which can add a visual impact and also plays a critical role in safety apart from lighting. Use of stainless steel front cover and powder coated aluminium housing ensures that the fixture is corrosion resistant. These LED Outdoor lights also change the ambience of the area and sets a colorful and happy mood. LED wooden up light with low wattage LED & PWM dimming. Recessed fixtures for pool deck lighting applications.

    Outdoor lighting products for projects: https://www.est.net.in/outdoor-led-lighting/swimming-pool-lights/
