OUTDOOR LED BOLLARD LIGHT

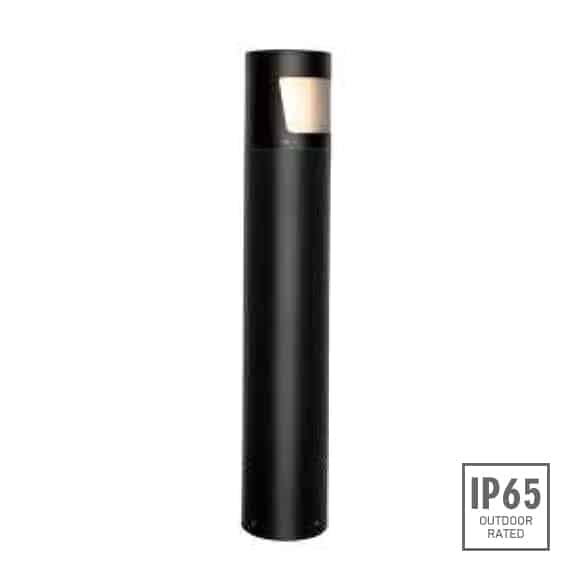

LED Bollard Light - D9AKL4234 | D9AKM4234 | D9AKH4234
High Grade Bollard Lights with 42 x 0.2W LED. Optional flange base, PMMA diffuser, fixture size options, 3000K/6000K CCT. Available in powder coated colors of sanded black, light sanded grey and dark grey.
Bollard lights are a type of architectural outdoor lighting fixture which gives off light from the top or the sides. It is used to illuminate steps, walkways or pathways. Available in various heights and designs. The uses of this light can be in playgrounds, roadways, malls, parks, parking spots and safety. Bollards are also applicable for security purpose and helps in managing traffic.
Some of the highlights are as follows:

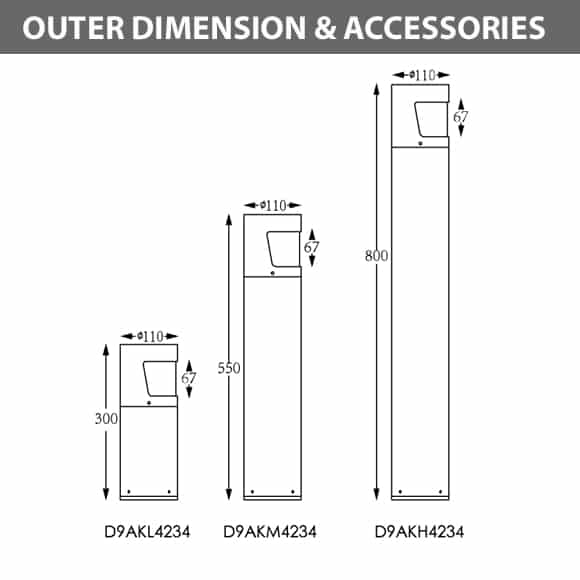

Material Specifications: D9AKL4234 | D9AKM4234 | D9AKH4234
- Front cover & Housing:
- 12# Die-casting powder coated alumimium T=60-80μm. Adhesion of ISO class 1/ASTM class 4B, Hard Crome plated stainless Steel SUS 316#
- Light Window:
- PMMA
- LED:
- SMD3030
- LED Driver:
- Constant Voltage Input, Constant Current Output
- Power Cable:
- H05RN-F 3X1.0mm2 L=0.3m H05RN-F 3X1.0mm2 L=0.5m H05RN-F 3X1.0mm2 L=1.0m
- Operating Temperature :
- -20⁰C~40⁰C
- CCT:
- 3000K/6000K
- Base:
- Standard Base / Flange Base
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA
| Model# | Light Source | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) |
|---|---|---|---|---|---|
| D9AKL4234 | 42x0.2W | 120/240V | 120=73 | 240=41 | 120V=8.6 | 240V=9 | Cool White=450 | Warm White=397 |
| D9AKM4234 | 42x0.2W | 120/240V | 120=73 | 240=41 | 120V=8.6 | 240V=9 | Cool White=450 | Warm White=397 |
| D9AKH4234 | 42x0.2W | 120/240V | 120=73 | 240=41 | 120V=8.6 | 240V=9 | Cool White=450 | Warm White=397 |
IP68 WATERPROOF CONNECTORS
High Grade Bollard Lights with 42 x 0.2W LED. Optional flange base, PMMA diffuser, fixture size options, 3000K/6000K CCT.
Bollard lights are a type of architectural outdoor lighting fixture which gives off light from the top or the sides. It is used to illuminate steps, walkways or pathways. Available in various heights and designs. The uses of this light can be in playgrounds, roadways, malls, parks, parking spots and safety. Bollards are also applicable for security purpose and helps in managing traffic.
