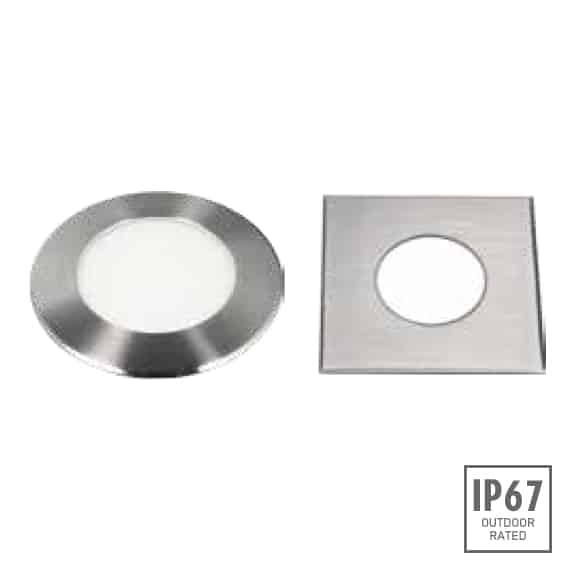

Recessed Wooden Floor Light - D2XBR1241 - D2XBS1241 Image
Recessed Wooden Floor Light - D2XBR1241 - D2XBS1241 Dia

Product Certification

LED Recessed Wooden Up-Light - D2XBR1241 | D2XBS1241


  • Compare us with the best manufacturer before buying our LED outdoor Lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

    • Some of the highlights are as follows:

    Material Specifications: D2XBR1241 | D2XBS1241


    Front cover & Housing:
    Hard chromeplated stainless steel SUS 316#. 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Tempered frosted step glass.T=8mm
    Glass Pressure Capacity:
    Full area=3370kgs
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Operating Temperature :
    -20⁰C~40⁰C
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali
    TECHNICAL DATA
    Model#Light Source LensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D2XBR124112x0.06W-- 24V DC | 240V24V=34 | 240V=1724V=0.8 | 240V=1.2Cool White=20 | Warm White=1308
    D2XBS124112x0.06W-- 24V DC | 240V24V=34 | 240V=1724V=0.8 | 240V=1.2Cool White=20 | Warm White=1308
    IP68 WATERPROOF CONNECTORS
    Socket
    Plug
    Application
    Outer dia
