LED RECESSED WOODEN FLOOR LIGHT



LED Recessed Wooden Up-Light D2HF1634

Recessed up light with 3W-4W LED & low lumens output. Stainless steel cover, SMD3030 LED, IP67 & IK09 rating with IP68 connectors. High grade aluminum housing and SUS 316# cover makes this fixture corrosion proof. These fixtures are available in warm white to cool white color temperature of 2000K/3000K/6000K CCT.
These lights give a modern look to any outdoor area and is perfect for soft lighting applications. Recessed up light comes with 3W-4W LED depending on the voltage input. These products are a perfect solution to range of architectural applications.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product catalog and check out other products of your choice

  • Some of the highlights are as follows:

    Material Specifications D2HF1634


    Front cover & Housing:
    Hard chromeplated stainless steel SUS 316#. 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Tempered frosted step glass.T=8mm.white print
    LED:
    SMD3030 type LED
    Cable Gland:
    IP67 copper and nicked coated
    Gasket:
    Molding shaped silicone seal
    LED Driver:
    Constant Voltage Input,Constant Current Output
    Power Cable:
    H05RN-F 2×1.0mm2 L=0.5(kow voltage) H05RN-F 3×1.0mm2 L=0.5(high voltage)
    Operating Temperature :
    -20⁰C~40⁰C

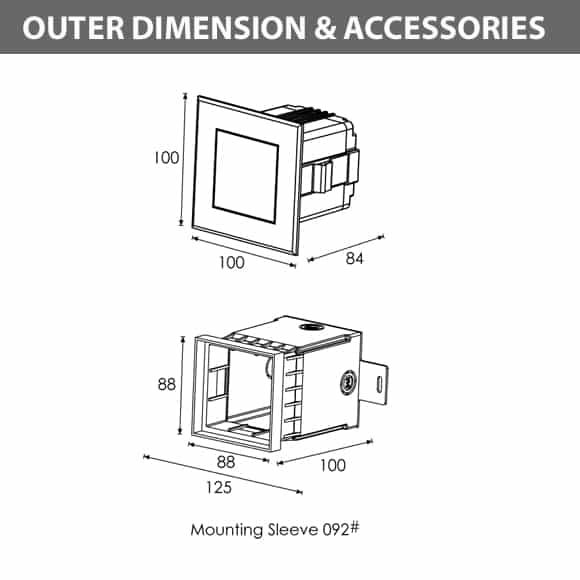

    Mounting Sleeve :
    ABS 092#
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali
    Model#Light Source LensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D2HF163416×0.2W-- 24V DC | 120V | 240V24V=125 | 120V=58 | 240V=3424V=3 | 120V=3.7 | 240V=3.8Cool White=72 | Warm White=6509

    Recessed up light with 3W-4W LED & low lumens output. Stainless steel cover, SMD3030 LED, IP67 & IK09 rating with IP68 connectors. High grade aluminum housing and SUS 316# cover makes this fixture corrosion proof. These fixtures are available in warm white to cool white color temperature of 2000K/3000K/6000K CCT. These lights give a modern look to any outdoor area and is perfect for soft lighting applications. Recessed up light comes with 3W-4W LED depending on the voltage input. These products are a perfect solution to range of architectural applications. The light is made of stainless steel cover with SMD3030 LED, IP67 & IK09 rating and gives low lumens output.
