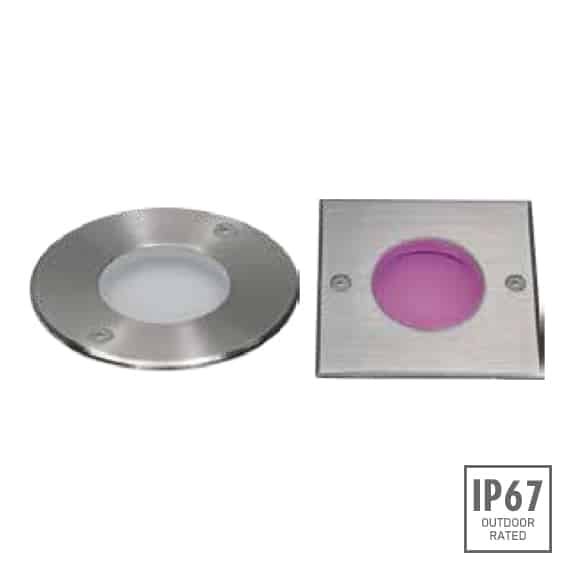

LED RECESSED WOODEN FLOOR LIGHT



LED Recessed Wooden Up-Light D2CAR0607 A | D2CAS0607 A

Slim recessed deck light with 5mm frosted diffuser. 2000K/3000K/6000K CCT, Triac/PWM dimming for outdoor deck lighting applications. Applications can be in step lighting, highlight pools, wooden decks. These fixtures are also applicable for deck lighting, garden steps & pathways. High grade powder coated aluminium and stainless steel front ring makes this fixture corrosion proof.
Slim recessed deck light is available in warm white to cool white color temperature of 2000K/3000K/6000K CCT. Triac/PWM dimming support is available with 5mm frosted diffuser for outdoor deck lighting applications. These lights give a modern look to any outdoor area and is perfect for soft lighting applications.

  • Compare us with the best manufacturer before buying our LED outdoor lighting products
  • A free installation guide is provided with each product
  • Check out the fascinating designs, quality, and prices
  • Click the box below to download individual product ecatalog and check out other products of your choice

  • Some of the highlights are as follows:

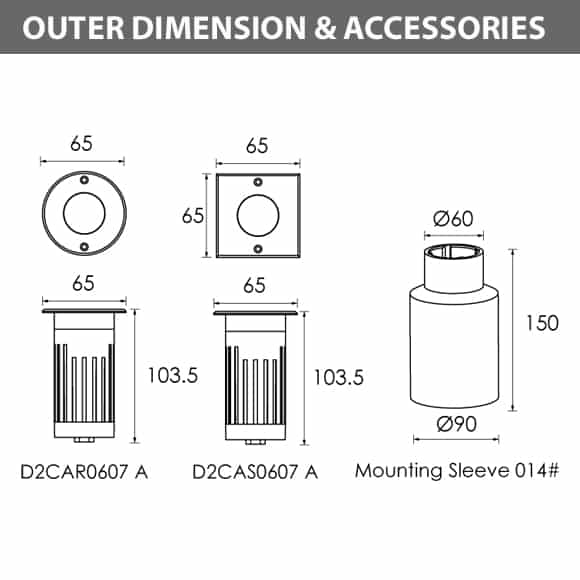

    Material Specifications D2CAR0607 A | D2CAS0607 A


    Front cover & Housing:
    Hard chromeplated stainless steel SUS 316#. 12# Die-casting dark grey powder coated aluminum. T=60-80μm.Adhesion of ISO class 1/ASTM class 4B
    Light Window:
    Tempered frosted step glass.T=5mm
    Glass Pressure Capacity:
    Full area=783kgs
    Power Cable:
    H05RN-F 2X1.0mm2 L=0.5m(low voltage) H05RN-F 3X1.0mm2 L=0.5m(high voltage)
    Operating Temperature :
    -20⁰C~40⁰C
    LED Driver :
    Constant Voltage Input,Constant Current Output
    Mounting Sleeve:
    ABS 014#
    CCT:
    2000K/3000K/6000K
    Dimmable Support:
    Triac PWM 1-10V Dali
    Model#Light Source LensLens DegreeInput VoltageOperating Current(MA)Consumption (W)Lumance (LM)IK
    D2CAR0607 A6×SMD2835-- 24V DC | 120V | 240V24V=16 | 120V=13 | 240V=724V=0.38 | 120V=0.7 | 240V=0.8Cool White=4 | Warm White=3.509
    D2CAS0607 A6×SMD2835-- 24V DC | 120V | 240V24V=16 | 120V=13 | 240V=724V=0.38 | 120V=0.7 | 240V=0.8Cool White=4 | Warm White=3.509

    Slim recessed deck light with 5mm frosted diffuser. 2000K/3000K/6000K CCT, Triac/PWM dimming for outdoor deck lighting applications. Applications can be in step lighting, highlight pools, wooden decks. These fixtures are also applicable for deck lighting, garden steps & pathways. High grade powder coated aluminium and stainless steel front ring makes this fixture corrosion proof. Slim recessed deck light is available in warm white to cool white color temperature of 2000K/3000K/6000K CCT. Triac/PWM dimming support is available with 5mm frosted diffuser for outdoor deck lighting applications. These lights give a modern look to any outdoor area and is perfect for soft lighting applications.
