High-end Linear Wall Washer
High-end Linear Wall Washer - S6KA1257 | S6KA2457

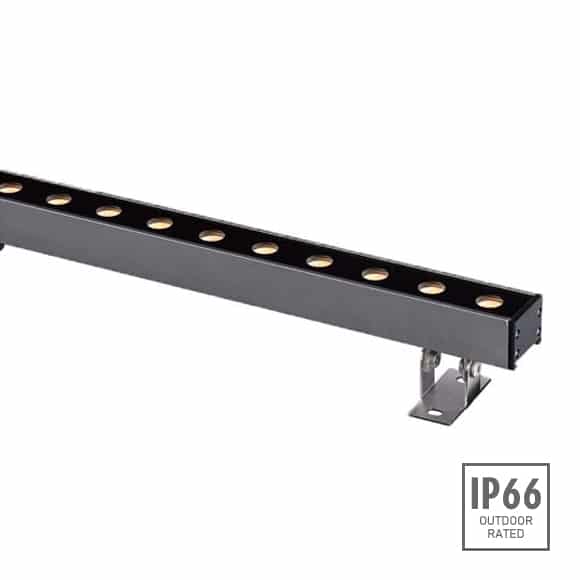

High-end linear wall washer for facade lighting projects, highlighting wall, indirect LED lighting and feature wall design. Wattage start from 6W to maximum of 48W with beam angle of 10⁰*30⁰. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. These fixtures also illuminate large vertical surfaces and also add a touch of drama. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications S6KA1257 | S6KA2457
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=4mm
- Gasket:
- Glass and housing are silicon sealed
- LED:
- OSRAM
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- Hard Chrome plated stainless steel SUS 304#
- Power Cable:
- H05RN-F 2X1.0mm2 L=0.25m (low voltage)
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

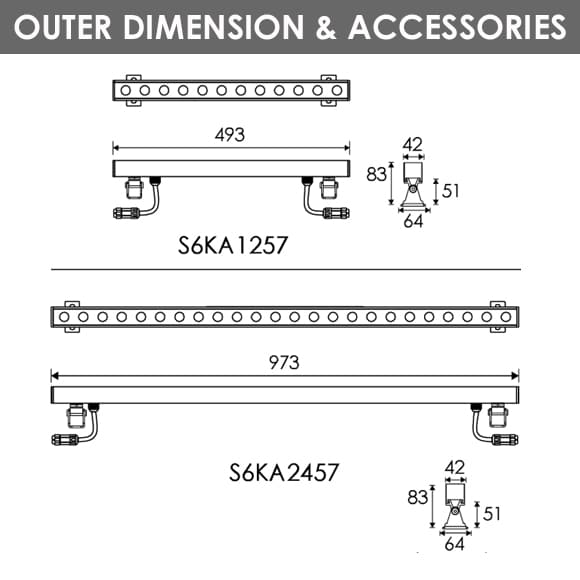

| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| S6KA1257 | 12x1.5W | B27 | 10⁰x30⁰ | 493 | 24V DC | 1000 | 24 | Cool White = 1943 | Warm White = 1494 | 06 |
| S6KA2457 | 24x1.5W | B27 | 10⁰x30⁰ | 973 | 24V DC | 1985 | 47 | Cool White = 3878 | Warm White = 2939 | 06 |
IP68 WATERPROOF CONNECTORS
High-end linear wall washer
High-end linear wall washer for facade lighting projects, highlighting wall, indirect LED lighting and feature wall design. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall. It can also accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers illuminate a large area, while grazing fixtures create more of a “spotlight” effect. It can also be a great lighting option for feature wall design.
The most popular reason to use a Slim Linear Wall Washer is to illuminate an architectural facade – typically lighting facades of skyscrapers & city skylines. These fixtures are available in RGB/RGBW/mono color and are often used to light up historic monuments, government buildings and railway stations.
In Slim Linear Wall Washer, If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor wall washers. These fixtures also illuminate large vertical surfaces and also add a touch of drama. Highlighting wall feature and indirect LED lighting can also be one of the applications.
P65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can also be provided.
