Linear Wall Wash Lights

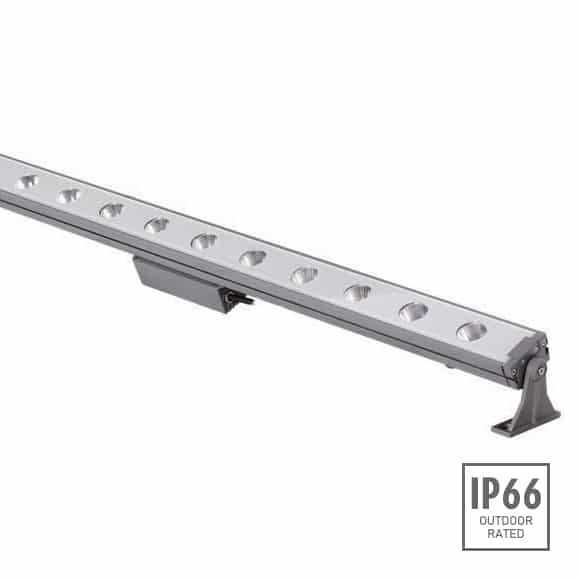

Linear Wall Wash Lights - R6FB0624 | R6FB1224
Linear wall wash lights for outdoor lighting projects, wall wash lighting system, landscape lighting and linear lighting for hotels. Wattage start from 6W to maximum of 48W with beam angle of 18, 24 & 32 degree. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Stunning designs with IP66 rating, Symmetric & Asymmetric lens are options in wall washer lights. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications R6FB0624 | R6FB1224
- Housing:
- Extruded aluminium, Powder coated
- Reflector:
- Optical Reflector, efficiency≥85%
- Light Window:
- Step Tempered glass T=3mm
- Cable gland:
- IP68 PG-11.0 PA66
- Gasket:
- IP68 plug male/female (option)
- LED:
- CREE
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- 12# Die-casting powder coated aluminium
- Power Cable:
- 2XH05RR-F 2X1.50mm2 L=0.3m(low voltage) 2XH05RN-F 3X1.0mm2 L=1.0m(high voltage)
- CCT:
- 3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali

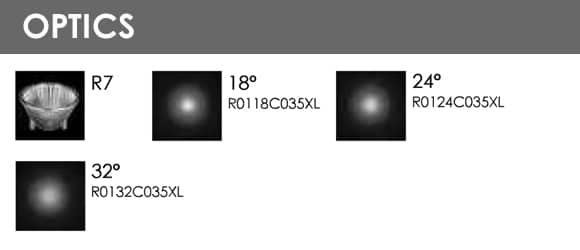

TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| R6FB0624 | 6X4W CREE | R7 | 24⁰ | 525 | 24V DC | 120 | 240 | 24V=1200 | 120V=230 | 240V=117 | 24V=28.8 | 120V=25 | 240V=25 | Cool White = 2345 | Warm White = 2088 | 05 |
| R6FB1224 | 12x4W CREE | R7 | 24⁰ | 1025 | 24V DC | 120 | 240 | 24V=2380 | 120V=422 | 240V=217 | 24V=57.6 | 120V=50 | 240V=49.5 | Cool White =4645 | Warm White = 4134 | 05 |
IP68 WATERPROOF CONNECTORS
Linear wall wash lights
Linear wall wash lights for outdoor lighting projects, wall wash lighting system, landscape lighting and linear lighting for hotels. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. With stunning designs, architects can certainly create beautiful lighting effects for their projects.
IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. Asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the COB LED wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings up to 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
It also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls. Applications also include linear lighting for hotels and resorts.
Adjustable clamps and accessories are SS316 which also protect the fixture from corrosion. These lights are also available in RGB and RGBW, and can be provided along with DMX controls to create infinite lighting effects. Lighting designers and architects can use these high quality LED fixtures in their lighting designs, wall wash lighting system and landscape lighting.
Check our range of COB inground lights for prestigious projects.
