Exterior Linear Lighting

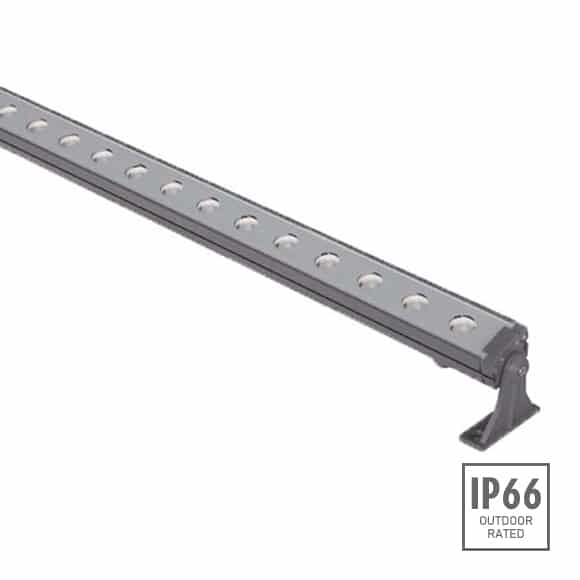

Exterior linear lighting - B6QB1057 | B6QB2057 | B6QC1057 | B6QC2057
Exterior linear lighting fixtures for facade architecture, residential building design, hotel lighting solution and wall grazer light. Wattage start from 6W to maximum of 48W with beam angle of 9 ,15, 20, 30, 45 & 60 degree. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
These fixtures also illuminate large vertical surfaces and add a touch of drama. It is a great way to highlight the facade architecture of a hotel. Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Stunning designs with IP66 rating, Symmetric & Asymmetric lens are options in wall washer lights. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications B6QB1057 | B6QB2057 | B6QC1057 | B6QC2057
- Housing:
- Extruded aluminium, Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=3mm
- Cable gland:
- IP68 PG-11 PA66
- Seal:
- Glass and housing are silicon sealed
- LED:
- OSRAM SMD3030
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- 12# Die-casting powder coated aluminium
- Power Cable:
- 2XH05RN-F 2X1.0mm2 L=0.5m(low voltage) 2XH05RN-F 3X1.0mm2 L=0.5m(high voltage)
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V DaliB6QB1057/B6QB2057)
TECHNICAL DATA
| Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
|---|---|---|---|---|---|---|---|---|---|
| B6QB1057 | 10x2W | B33D | 20⁰ | 525 | 24V DC | 24V=1041 | 24V=25 | Cool White = 1476 | Warm White = 1174 | 05 |
| B6QB2057 | 20x2W | B33D | 20⁰ | 1025 | 24V DC | 24V=2056 | 24V= 50 | Cool White = 2890 | Warm White = 2308 | 05 |
| B6QC1057 | 10x2W | B33D | 20⁰ | 525 | 120 | 240 | 120V=174 | 240V= 92 | 120V=20.8 | 240V=20.8 | Cool White = 1476 | Warm White = 1338 | 05 |
| B6QC2057 | 20x2W | B33D | 20⁰ | 1025 | 120 | 240 | 120V=374 | 240V= 202 | 120V=41 | 240V=42.2 | Cool White = 2890 | Warm White = 2518 | 05 |
IP68 WATERPROOF CONNECTORS
Exterior linear lighting
Exterior linear lighting fixtures for facade architecture, residential building design, hotel lighting solution and wall grazer light. Most reliable and trusted brand by lighting designers. These are slim lights with different wattages, beam angles and color temperatures. Wattage starts from 6W to maximum of 48W. Beam angles offered are 15, 20, 30 and 50 degrees.
Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Architects and lighting designers use outdoor architectural wall washer fixtures for various high end outdoor lighting projects. Product & manufacturing process certifications include UL, CUL, SAA, TUV, CE, BIS, ISO-9001 & ISO -14005.
If you’re looking for a way to add some extra light and interest to your home’s exterior, consider outdoor architectural wall washers. These fixtures also illuminate large vertical surfaces and add a touch of drama. It is a great way to highlight the facade architecture of a hotel.
These fixtures are also available with various ingress protection options such as IP65, IP66 and IP67. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. Wall wash asymmetric beam angle of 10*30 and 15*32 can also be provided.
Adjustable clamps and accessories are SS316 which also protects the fixture from corrosion. These lights are also available in RGB and RGBW, and can create amazing effects with DMX controls. Lighting designers and architects can certainly use these high quality LED fixtures in their residential building designs, hotel lighting solution and prestigious projects. Architectural wall grazer light with 20W-40W power & built-in drivers.
Checkout our recessed floor lighting fixtures for deck lighting applications.
