WALL WASHER



Wall Washer - A6LC0658 | A6LC1258
Wall washer are slim lights with different wattages, beam angles and color temperatures. Wattage start from 6W to maximum of 48W with beam angle of 15 & 30 degree. Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion.
Color temperatures available are 2000K, 3000K and 6000K. RGB and RGBW can also be provided along with DMX controls. Stunning designs with IP66 rating, Symmetric & Asymmetric lens are options in wall washer lights. Architects and lighting designers use wall washer fixtures for various high end outdoor lighting projects.
Some of the highlights are as follows:
Material Specifications: A6LC0658 | A6LC1258
- Housing:
- Extruded aluminium anodized finishing or Powder coated
- Lens:
- Optical lens, efficiency≥85%
- Light Window:
- Tempered glass T=4mm
- Cable Gland:
- IP68 PG-9 PA66
- Gasket:
- Glass and housing are silicon sealed
- LED:
- NICHIA SMD3535
- Operating Temperature:
- -20⁰C-40C⁰
- Bracket:
- 12# Die-cating poeder coated aluminium
- Power Cable:
- H05RN-F 3X1.0mm2 L=0.5m
- CCT:
- 2000K/3000K/6000K
- Dimmable Support:
- Triac PWM 1-10V Dali
TECHNICAL DATA

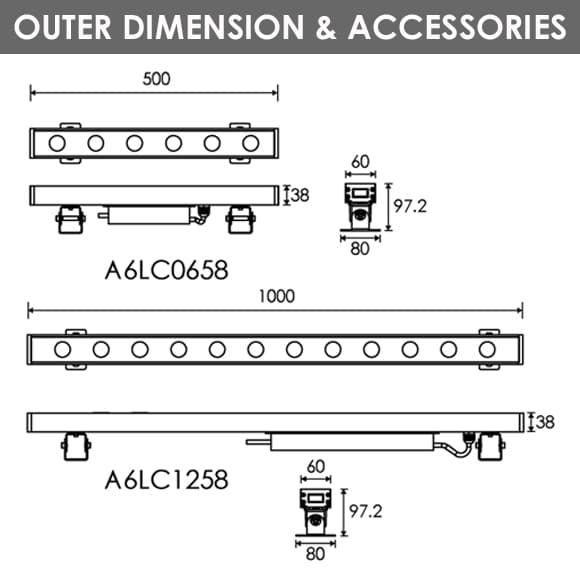

Model# | Light Source | LENS | Lens Degree | Length(MM) | Input Voltage | Operating Current(MA) | Consumption (W) | Lumance (LM) | IK |
---|---|---|---|---|---|---|---|---|---|
A6LC0658 | 6X4W NICHIA | A24 | 15⁰ | 525 | 120V | 240V | 120V=222 | 240V=114 | 120V=26 | 240V=26.1 | Cool White = 2236 | Warm White = 1834 | 05 |
A6LC1258 | 12X4W | A24 | 15⁰ | 1025 | 120V | 240V | 120V=425 | 240V=214 | 120V=50 | 240V=51 | Cool White = 4417 | Warm White = 3622 | 05 |


IP68 WATERPROOF CONNECTORS




Symmetrical Wall Washers for lighting facades of skyscrapers, historic monuments, government building, railway station, airports and other city skylines with RGB/RGBW/mono color. Wall washing illuminates a vertical surface with uniform brightness and draws attention to the outdoor wall, and can be used to accentuate an entrance, fireplace, or artwork.
There are a few things to keep in mind if you’re considering using outdoor wall washers. First, you’ll need to decide what type of fixture you want. There are two main types of wall washers: linear and grazing. Linear wall washers are designed to evenly illuminate a large area, while grazing fixtures create more of a “spotlight” effect. Wall washers evenly light up large areas and enhance the architecture.
Check Similar Products : Outdoor LED Lighting
In Symmetrical Wall Washers, IP65, IP66, IP67 & IP68 outdoor rated, mono or multi-color LED for lighting projects. Wattages start from 6W to a maximum of 120W. Standard beam angles offered are narrow to wide beams from 9, 12, 15, 20, 24, 40, 60. wall wash asymmetric beam angle of 10*30 and 15*32 can be provided as well.
Spacing between the wall washer and the surface helps to determine the level of brightness. For a focused, bright effect the fixture should be placed closer to the wall. Wall washers with high wattages can light up buildings upto 50 floors high. The purpose of wall washers is to illuminate vertical surfaces and enhance the architecture.
Symmetrical Wall Washers also helps in highlighting the details and textures on a structure or wall and gives a modern look to the lighting space. Wall washers are also available with in-built drivers & built-in DMX decoders for easy installation and DMX controls.
Body material used is aluminium die-cast in powder coated colors of sanded grey, black and silver. Adjustable clamps and accessories are SS316 to protect the fixture from corrosion. Symmetrical Wall Washers are also available in RGB and RGBW, and can be provided along with DMX controls to create infinite lighting effects. Lighting designers and architects can use these high quality LED fixtures in their lighting designs, landscape & prestigious projects.
